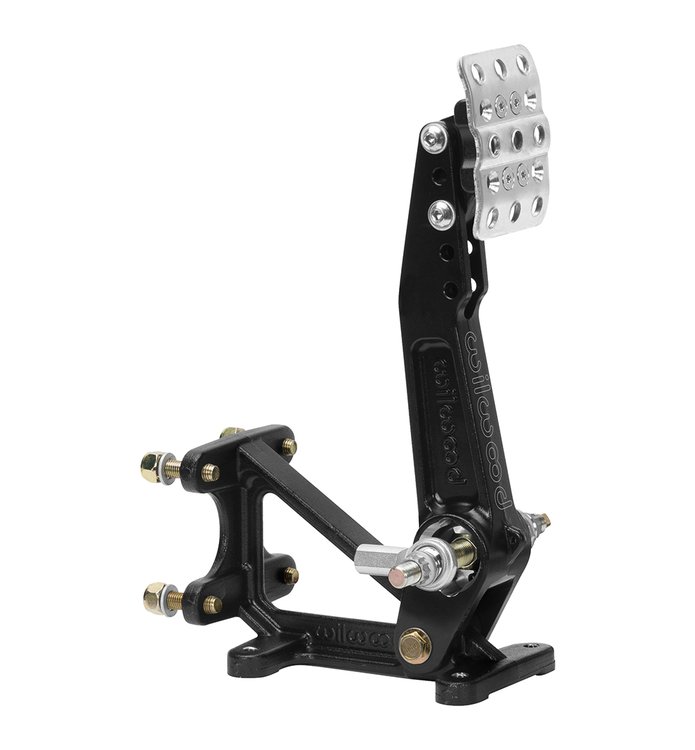

Wilwood 340-16377 Adjustable Ratio Pedal Features:

• Pedal head adjusts vertically to change the ratio for more brake feel or less effort
• Tru-Bar balance bar provides front-to-rear brake bias fine-tuning
• Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and the rod-end bearing pushrod attachments reduce compliance and friction
• Can be used with an optional remote knob 340-4990 (sold separately) for on-track adjustments
• The non-skid waffled pedal pad can be laterally adjusted 1/2 in. in either direction for driver preference
• Lightweight aluminum frame, with high strength, reinforced I-beam style forged pedal arm
• Pedal accepts 2 1/4 in. vertical mount flange single outlet master cylinders such as Wilwood High Volume Aluminum Master Cylinders or JEGS High-Volume Brake Master Cylinders or equivalent (each sold separately)
