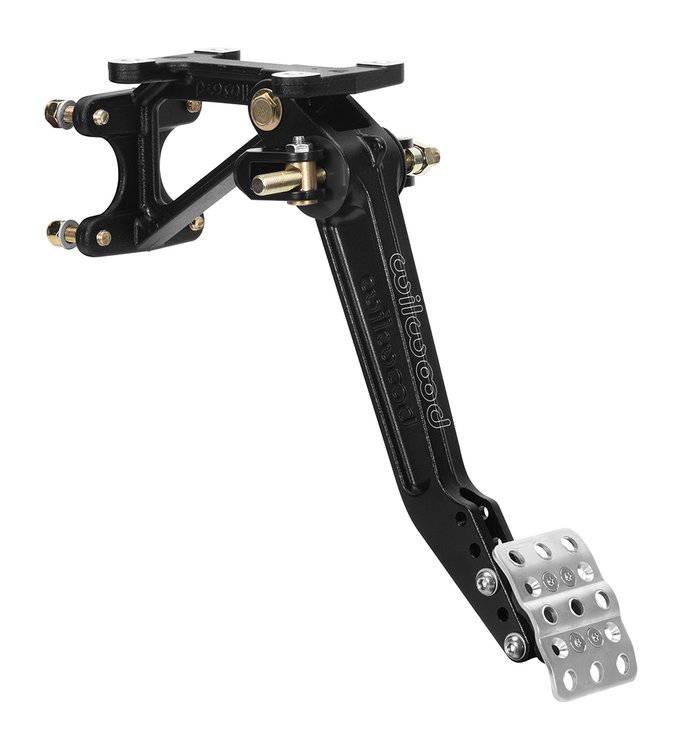

Wilwood 340-16379 Adjustable Ratio Brake Pedal Assembly Features:

• Made from lightweight aluminum
• Pedal head adjusts vertically to bring a 6.25:1, 6.63:1, or 7.00:1 ratio
• Clutch master cylinder and two brake master cylinders mount directly to the assembly through the firewall
• Non-skid waffle pads can be laterally adjusted 1/2 inch in either direction for driver comfort
• Balance bar embraces a positive detent stop for each complete turn to maintain the adjustment position
• Jam nut is included to lock the desired adjustment in place or an optional remote knob 340-4990 (sold separately) can be used for faster on-track adjustments
• Pin & clevis pushrod attachment system is utilized for a bind-free operation and guarantees the slightest possible misalignment angle

Wilwood 340-16379 Adjustable Ratio Brake Pedal Assembly Note:

• Works with any Wilwood 2.25 in. verticle mount flange, single outlet master cylinders
