Wilwood 340-16400 Features:

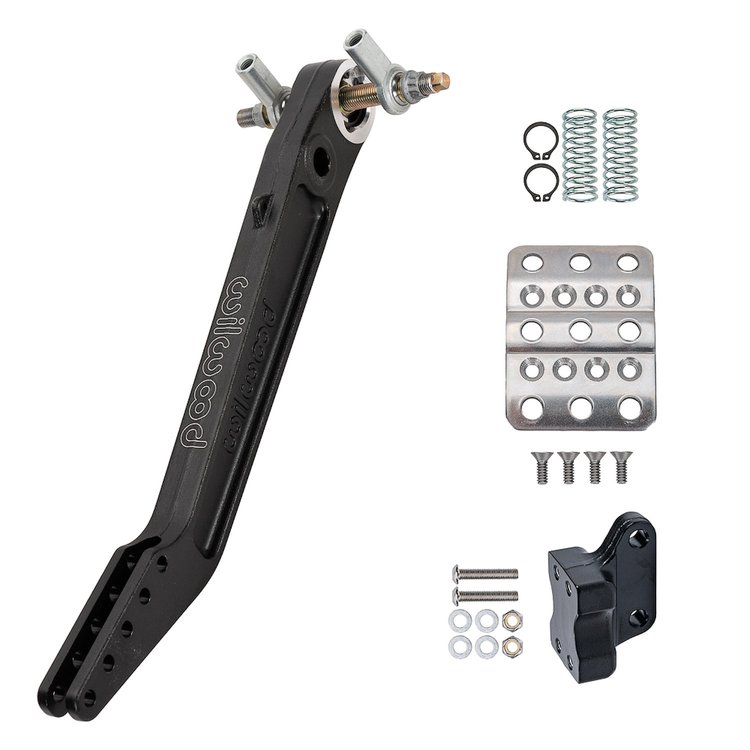

Wilwood’s new Tru-Bar Reverse Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal and trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16400 kits will convert the following 5.1-6.25 to 1 ratio reverse mount assemblies: 340-11299,340-12509,340-13835,340-13836,340-13837,340-15073,340-15074,340-15075,340-15076,340-15077, 340-3342,340-4828, 340-5180,340-5181 and 340-6451.
