Wilwood 340-16402 Features:

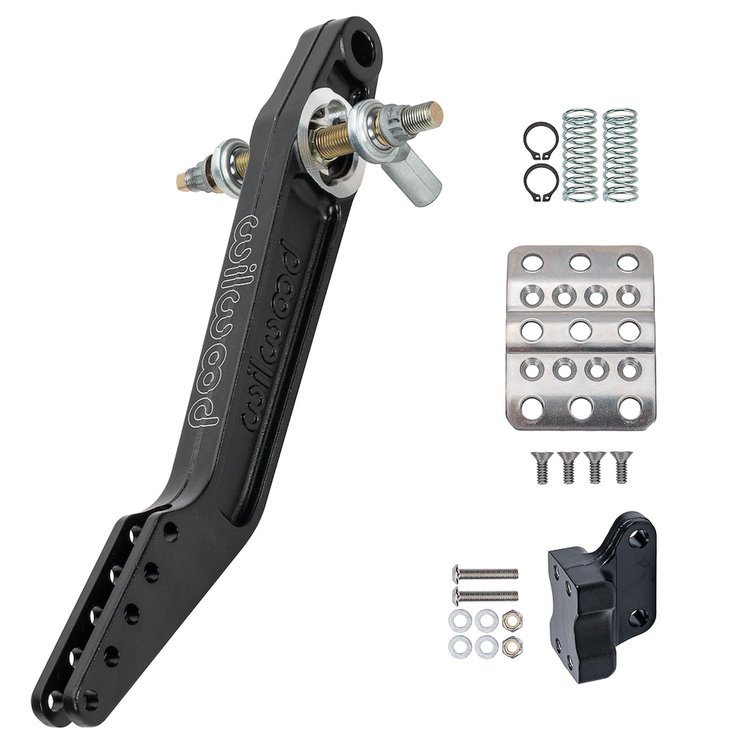

Wilwood’s new Tru-Bar Forward Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal and trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16402 kits will convert the following 5.1-6.25 to 1 ratio forward mount assemblies: 340-11295,340-15072,340-16350,340-16382,340-16383 and 340-3950
