Wilwood 340-16413 Features:

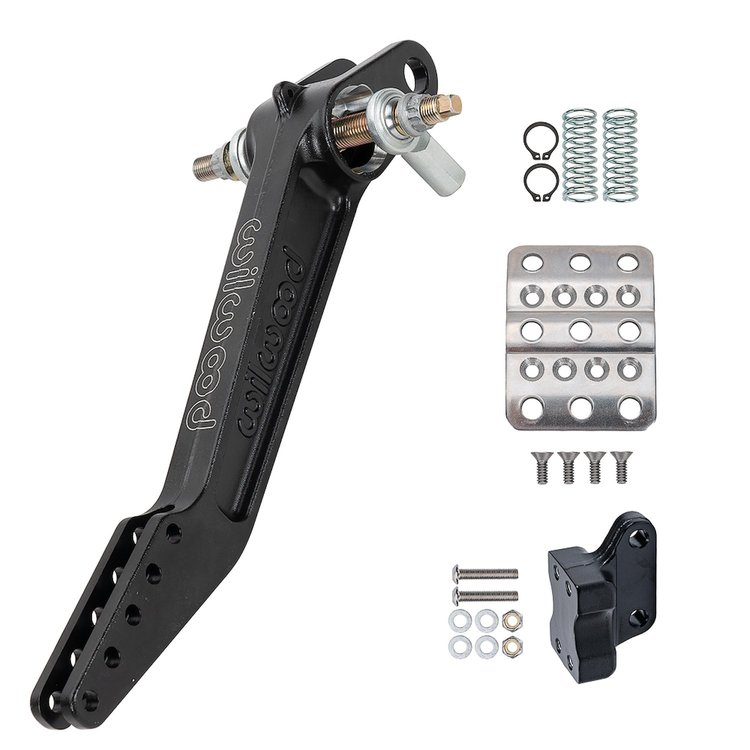

Wilwood’s new Tru-Bar Forward Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal and trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16402 kits will convert the following 7 to 1 ratio forward mount assemblies: 340-1287,340-13832,340-15079 and 340-16379.
