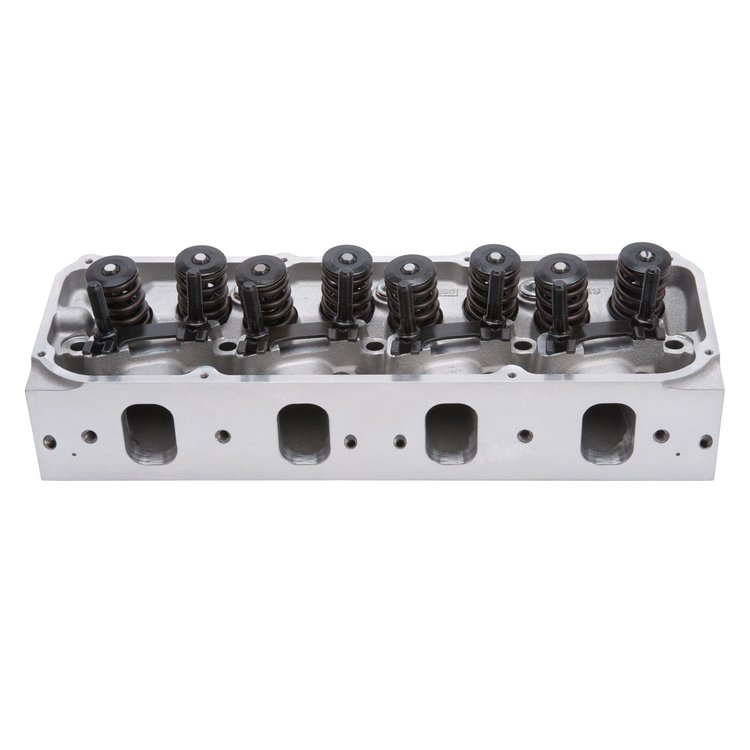

Edelbrock 61629 - Edelbrock Ford 351C/351M/400M Performer RPM Cylinder Heads



Edelbrock 61629 - Edelbrock Ford 351C/351M/400M Performer RPM Cylinder Heads

Part Number: 350-61629

Ford Performer RPM Cleveland Cylinder Head
  • 351C/351M & 400M
  • 190cc Intake Ports
  • 60cc Combustion Chambers
  • 2.05"/1.60" Valves
  • 1.55" Valve Springs
  • Max Lift: .580
  • 7/16" Rocker Studs
  • Assembled, Sold Each
  • $1,134.50

    Ships
    from Manufacturer
    Made In USA
    FREE Shipping

    Edelbrock 61629 - Edelbrock Ford 351C/351M/400M Performer RPM Cylinder Heads Details

    Ford Performer RPM Cleveland Aluminum Cylinder Heads

  • Combustion chamber volume: 60cc
  • Intake runner volume: 190cc
  • Exhaust runner volume: 90cc
  • Intake valve diameter: 2.05"
  • Exhaust valve diameter: 1.60"
  • Valve stem diameter: 11/32"
  • Valve guides: Manganese bronze
  • Deck thickness: 5/8"
  • Valve spring diameter: 1.55"
  • Valve spring maximum lift: .580"
  • Rocker stud: 7/16"
  • Guideplate: Hardended steel
  • Pushrod diameter: 5/16"
  • Exhaust port location: Stock
  • Spark plug fitment: 14mm x 3/4 reach, gasket seat
  • Not For Sale Or Use On Pollution Controlled Motor Vehicles

    Valve Lift .100" .200" .300" .400" .500" .600" .700"
    Intake 58 120 180 227 260 265 -
    Exhaust 54 105 138 151 161 165 -

  • Specifications:

    Emission
    50 State Legal
    Type
    Complete
    Usage
    Street/Performance
    Engine Make/Size
    Ford 351M-400
    Cylinder Head Type
    Standard
    Preparation
    Bolt On (Not Required)
    Finish
    Cast Aluminum
    Accessory Bolt Holes Drilled
    Yes
    CNC-Machined Combustion Chamber
    No
    CNC-Machined Exhaust Runner
    No
    CNC-Machined Intake Runner
    No
    Combustion Chamber Style
    Kidney
    Combustion Chamber Volume (cc)
    60
    Cylinder Head Finish
    Natural
    Cylinder Head Material
    Aluminum
    Cylinder Head Style
    Assembled
    Damper Spring Included
    Yes
    Exhaust Port Location
    Standard
    Exhaust Port Shape
    Square
    Exhaust Runner Volume (cc)
    90
    Exhaust Valve Diameter (in.)
    1.6
    Exhaust Valves Included
    Yes
    Guideplates Included
    Yes
    Heat Crossover
    No
    Intake Port Location
    Standard
    Intake Port Shape
    Rectangular
    Intake Runner Volume (cc)
    190
    Intake Valve Angle
    9.5
    Intake Valve Diameter (in.)
    2.05
    Intake Valves Included
    Yes
    Lock Style
    7 degree
    Locks Included
    Yes
    Machined for O-Ring
    No
    Maximum Valve Lift (in.)
    0.58
    Number of Springs Per Valve
    Single
    Oiling Style
    Through pushrod
    Outside Diameter of Outer Spring (in.)
    1.55
    Quantity
    Sold individually
    Retainer Material
    Chromoly steel
    Retainers Included
    Yes
    Rocker Arm Nut Thread Size (in.)
    7/16"-20
    Rocker Arm Nuts Included
    No
    Rocker Arm Studs Included
    Yes
    Rocker Arms Included
    No
    Steam Holes Drilled
    No
    Valve Cover Mounting Style
    Perimeter bolt
    Valve Guide Material
    Manganese bronze
    Valve Guides Included
    Yes
    Valve Seat Machine Style
    3-angle
    Valve Seat Material
    Ductile iron
    Valve Seats Machined
    Yes
    Valve Springs Included
    Yes
    Valve Stem Seal Style
    Positive stop
    Valve Stem Seals Included
    Yes
    Manufacturer's Part Number:
    61629

    Until now, there weren't many options available when it came to aftermarket head selection for the Clevelands. Now, that's all changed with the Performer RPM head for 351C.

    Designed to work with the 351C, 351M, and 400M, they feature very streetable 190cc intake runners with 2.05" intake and 1.60" exhaust valves that provide more than enough volume for outstanding power to 6500+ rpm. Not only do they offer superior flow over a stock Cleveland or 351/400M head, but they also offer the flexibility to work on the standard 302 or 351 Windsor block to build your own version of a Boss 302, or the infamous "Clevor" engine! The intake and exhaust ports are in the stock location to further add to the streetability of these heads, and can be made to breathe even better with minor port work. Made In The USA!



    Features:
  • Combustion Chamber Volume: 60cc
  • Intake Runner Volume: 190cc
  • Exhaust Runner Volume: 90cc
  • Intake Valve Diameter: 2.05"
  • Exhaust Valve Diameter: 1.60"
  • Valve Guides: Manganese Bronze
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: 1.55"
  • Maximum Lift: .580"
  • Pushrod Diameter: 7/16"
  • Guideplate: Hardened Steel
  • Exhaust Port Location: Stock
  • Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
  • Made In The USA!

  • Items You Need
    351-C, 351-M, 400-M,
