Powder Coating Equipment

Powder coating equipment lets you lay down a tough, baked-on finish on brackets, wheels, valve covers, and other metal parts in your own garage. This category brings together powder coating guns, complete systems, a bench-top oven, booths, hoppers, and powders in many colors and container sizes. Use the guidance below to match a gun, oven, and powder to the parts you're coating and the space you're working in.

Show More

Which Powder Coating Gun or System Fits Your Projects?

A complete powder coating system is the simplest way to start, because you get the gun and its matched components in one package. From JEGS, you can choose the Powder Coating System (555-58300) or the Powder Coating System Kit (555-58300K).

Eastwood HotCoat equipment gives you more voltage options. The 40kV Powder Coating System with a 2-lb. hopper (74100) handles small parts, and the HotCoat 100kV Powder Coating System (71860) steps up the output. Higher voltage creates a stronger electrostatic charge, which generally helps powder wrap edges and build film on larger parts.

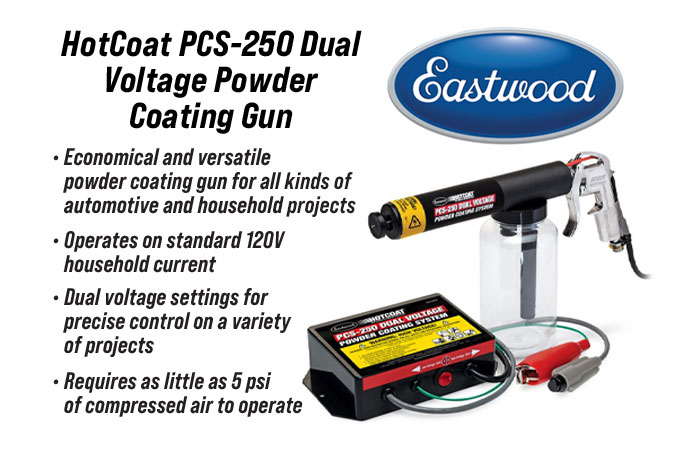

For upgrades or replacements, look at the HotCoat PCS-250 dual-voltage gun (33278) and the HotCoat 100kV gun assembly with interconnect cable and LED light (71844). Powder guns spray electrostatically charged dry powder, so they work differently than the liquid spray guns in Painting Equipment.

What Powder Coating Powder Colors and Sizes Can You Buy?

You can buy powder coating powder here in containers as small as 8 oz. and as large as 55 lb. JEGS powder comes in 35-oz. containers, and Eastwood powders come in 8-oz., 1-lb., 25-lb., 50-lb., and 55-lb. sizes. Powder coat colors and finishes include:

  • JEGS gloss colors: Gloss Black, Gloss White, Gloss Blue, Gloss Red, and Semi-Gloss Black
  • Eastwood blacks: Flat Black, High-Gloss Black, and Hot Rod Black Texture
  • Eastwood clears: Satin Clear and Diamond Clear Gloss
  • Eastwood metallics and candies: Rally Wheel Silver, Cast Iron, Bronze Metallic, Candy Raspberry, and 3D Shimmering Metallic Battleship Burst
  • Eastwood mirror and solid colors: Mirror Red, Mirror Green, Ford Dark Blue, Kawasaki Green, Olive Drab Green, and Appliance White
  • Eastwood powder coating primers: Corrosion-Resistant Primer and Zinc-Rich Primer

Small sizes are handy for test panels and one-off brackets. Bulk sizes make sense when you're coating wheels or a full chassis. If you're weighing powder against liquid finishes for a restoration, read our guide to choosing classic car paint.

How Does a Powder Coating Oven Cure the Finish?

A powder coating oven melts the sprayed powder and cures it into a hard, continuous film. Most standard powders cure at about 400 degrees F part-metal temperature for roughly 10 to 20 minutes. Always follow the powder manufacturer's data sheet for exact cure settings.

Cure time starts when the part itself reaches temperature, not when the oven air does. Thick castings and heavy brackets take longer to heat through, so check the part's temperature instead of trusting the oven dial alone.

The JEGS bench-top powder coating oven (555-81430) reaches up to 450 degrees, which gives you room above most standard cure schedules. Its bench-top format suits small parts like brackets, pulleys, and hardware. Set it up next to the rest of your Shop Equipment to build a dedicated coating station.

How Should You Prep Parts Before Powder Coating?

Powder coat bonds to clean, bare metal, so prep decides how well your finish holds up. Strip old paint, rust, and scale first, then remove every trace of oil before you spray.

Media blasting removes old coatings and leaves a surface profile that helps powder grip. You'll find sandblast cabinets, soda blasters, and blast media in Surface Finishing & Blasting. Blast cabinets need a steady air supply, so size your setup with a unit from Air Compressors.

After blasting, clean parts with degreasers and metal prep from Paint Prep & Cleanup, and handle them with clean gloves. The HotCoat bench-top powder coating booth (70016) helps contain overspray while you spray. HotCoat Filter Tack Spray is also available for booth filters.

How Do You Choose a Starter Powder Coating Equipment Setup?

A starter powder coating equipment setup needs a gun system, a dedicated oven, prep tools, and powder. Start with the size of the parts you'll coat most often, since that drives your oven and gun choices.

If you're coating brackets, valve covers, and small hardware, the 40kV system or the JEGS Powder Coating System Kit is a practical starting point. Pair it with the bench-top oven and a few small containers of powder to learn the process.

As your volume grows, add the HotCoat 5-lb. fluidizing hopper (73083) for steadier powder flow. The HotCoat Powder Coating Accessories Kit (11536K) and a bottle and lid replacement set (set of 3) keep color changes simple. Finishing the body as well? Our how to paint your car guide covers the liquid side of the job.

When you're ready, shop powder coating equipment now and build your setup.

Vehicle

ADD A VEHICLE TO GUARANTEE PARTS FIT

See products that fit


Frequently Asked Questions About Powder Coating Equipment

Can You Use a Kitchen Oven to Cure Powder Coating?

No. Use a dedicated oven for powder coating, and never use one that's used for food. Curing powder releases fumes you don't want in a cooking appliance.

How Much Powder Coating Powder Do You Need?

It depends on part size, the number of coats, and how much overspray you lose. Start with an 8-oz. or 1-lb. container to test color and coverage on a few small parts. Move up to 25-lb., 50-lb., or 55-lb. sizes once you're coating wheels or running regular batches.

Do You Need a Primer Under Powder Coat?

A primer isn't required on every part, but it adds corrosion protection on bare steel that sees moisture or road spray. Eastwood offers Corrosion-Resistant Primer and Zinc-Rich Primer powders for this step. Follow the powder manufacturer's instructions for curing the primer before you apply the topcoat.

Can You Powder Coat Over Paint?

No. Old paint can bubble or lift under cure heat, and it keeps powder from bonding to the metal. Strip parts to bare metal first, usually by media blasting.

Do Powder Coating Guns Need Compressed Air?

Most powder coating guns use a regulated, dry air supply to move powder from the hopper to the gun. Moisture or oil in the line can cause sputtering and finish defects, so filter your air before it reaches the gun. Check your gun's manual for the recommended pressure.
