Edelbrock 2886

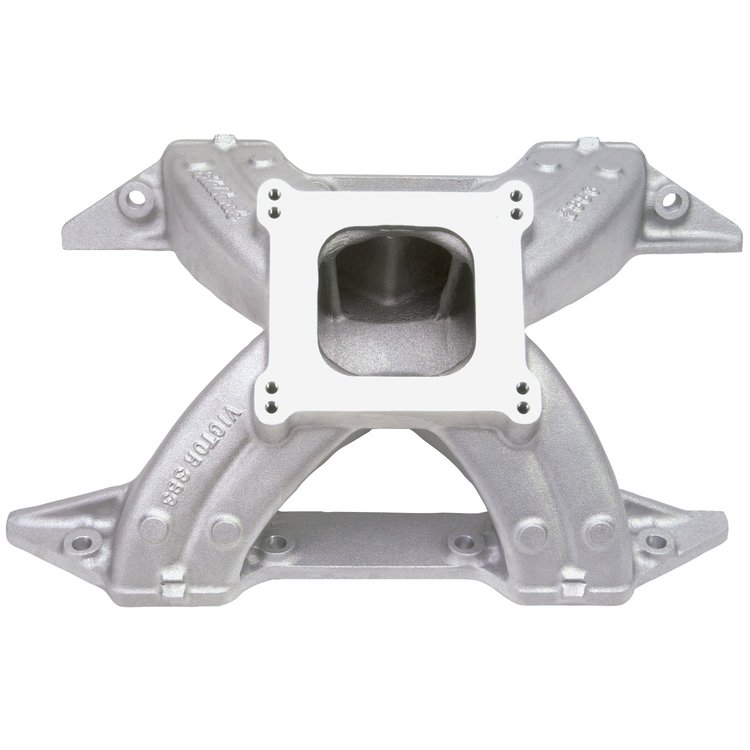

Edelbrock Victor 383 Intake Manifold Big Block Chrysler/Mopar B-Series Wedge

350-2886

made in usa
Free Shipping Ships

$320.75
Edelbrock Victor 383 Intake Manifold Big Block Chrysler/Mopar B-Series Wedge $320.75
Out of stock
QTY
Victor 383 Intake Manifold
  • Big Block Chrysler/Mopar B-Series Wedge
  • 4150 Carburetor Flange
  • 3500-7500 RPM Range
  • Satin Finish
  • Edelbrock 2886 Details

    Big Block Chrysler/Mopar Victor 383

    Now the latest Victor series design is available for competition Chrysler/Mopar B Series Wedge engines (361-383-400 c.i.d.). The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. The manifold has a square bore carburetor opening, but we've added material to the pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential.

    Installation Notes:
  • Port exit dimensions: 1.15'' x 2.17''
  • Recommended intake gasket: Edelbrock 350-7225 or Jegs 555-210500
  • Manifold height: (A) 6.13'' , (B) 6.13''
  • Carb pad height = 6.13''
  • View Manifold ''A/B'' Measurement Guide.
  • Square bore 4150 style carb flange but adaptable to Thermo-Quad carb
  • Includes Nitrous Bosses
  • Will not fit 1962-64 Max Wedge heads
  • Valley cover 350-7799 is required when used with Edelbrock Victor series cylinder heads.

  • Specifications:

    RPM Range
    3500-7500
    Number Of Carbs
    One
    Emission
    Without EGR
    Engine Make/Size
    Mopar 361-400
    Cylinder Head Type
    Standard
    Usage
    Racing
    Position
    N/A
    EGR
    Without EGR
    Basic Operating RPM Range
    3,500-7,500
    Carburetor Quantity
    One
    Engine Block Style
    Stock/OEM standard deck
    Intake Finish
    Natural
    Intake Manifold Height (in.)
    6.13
    Intake Material
    Aluminum
    Intake Section Included
    Complete
    Intake Style
    Single plane
    Quantity
    Sold individually
    Manufacturer's Part Number:
    2886

    Victor Race Series

    3500-8000+ RPM

    The Edelbrock Victor Series Intake Manifolds for Chrysler/Mopar powered applications are designed to produce high RPM competition proven results. The engineers at Edelbrock worked along side racers and top engine builders to design these cast aluminum, single-plane, straight runner, high-rise intakes for maximum power at high engine speeds! Match the cutting edge technology used in these intakes with Performer RPM or Victor cylinder heads on your race engine to produce the best results! !

    Designed by JEGS professionals so you get all the parts needed.
