This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.

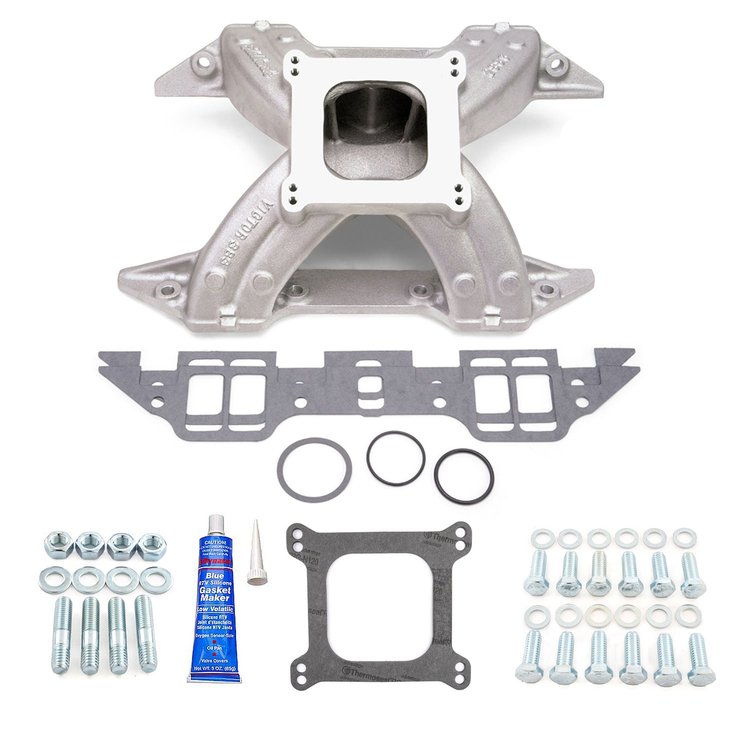

Kit includes:

• Edelbrock Intake Manifold 350-2886
• JEGS Intake Manifold Bolts 555-83200
• Edelbrock Intake Gaskets 350-7225
• JEGS Carburetor Base Gasket 555-16100
• JEGS Stud Kit 555-15840
• JEGS RTV Gasket Maker 555-28030



  Now the latest Victor series design is available for competition Chrysler/Mopar B Series Wedge engines (361-383-400 c.i.d.). The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. The manifold has a square bore carburetor opening, but we've added material to the pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM aluminum cylinder heads for even higher performance potential.



  Installation Notes:
• Port exit dimensions: 1.15' x 2.17'
• Recommended intake gasket: Edelbrock 350-7225 or Jegs 555-210500
• Manifold height: (A) 6.13' , (B) 6.13'; Carb pad height = 6.13'
• View Manifold 'A/B' Measurement Guide.
• Square bore 4150 style carb flange but adaptable to Thermo-Quad carb
• Includes Nitrous Bosses
• Will not fit 1962-64 Max Wedge heads
• Valley cover 350-7799 is required when used with Edelbrock Victor series cylinder heads.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
