Carbureted LS Manifolds

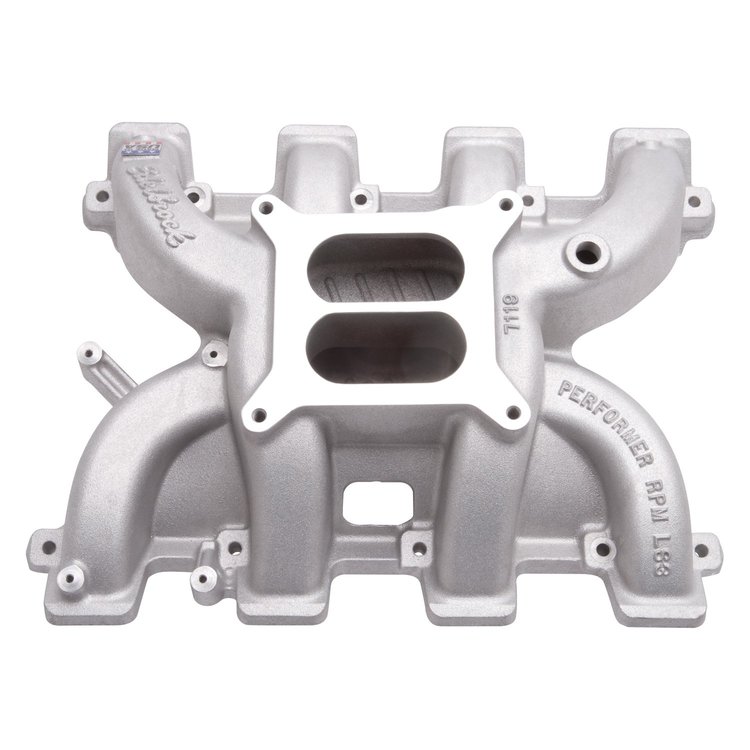

Designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Performer RPM LS3 manifold is ideal for anybody looking to build a carbureted LS3 or LS2 engine with an operating range between 1,500 - 6,500 rpm. It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve. It features a high-rise dual-plane design combined with a plenum that has been optimized for square-bore carburetors. Our advanced casting techniques allowed us to create a lightweight casting that weighs in at 14 lbs. Installation Notes
- Port Exit Dimensions: 1.16" x 2.40"
- Uses LS3/L92/L76 style individual port O-ring seals
- Recommended intake gasket; GM 809-19256623
- Manifold Height: (A) 4.66", (B) 5.56"; Carb pad height: 5.11"
- View Manifold ''A/B'' Measurement Guide.
- Comes with throttle cable/transmission kickdown cable bracket compatible with TH350, 200R-4 & TH700R-4 transmissions
- Use MSD ignition timing control module 121-6014
Edelbrock engineered Performer RPM LS intake manifolds allow the use of a square bore carb on these originally computer-controlled engines. Designed originally for the LS1 V8, they can be used on Gen III and Gen IV small blocks with cathedral or rectangle port heads. These manifolds will offer maximum power & optimum performance from 1500-6500 RPM.Satin or polished, these manifolds are available in a kit that also includes:
