340 LPH

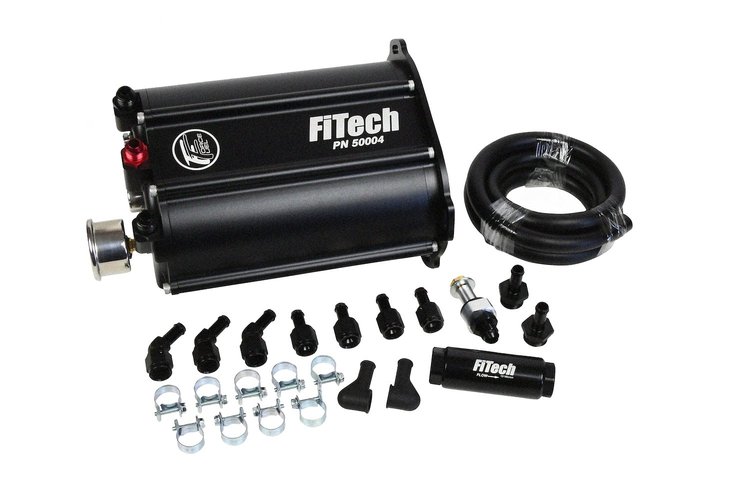

FiTech 50004 Force Fuel System
The all new FiTech Force Fuel System makes the upgrade to fuel injection even easier! The Force Fuel simply connects to a stock mechanical or electric fuel pump then supplies the EFI system with high pressure through the use of an internal 340-LPH pump. This means you don’t need to run a new feed line from the tank!
With a strong, versatile mounting bracket, the Force Fuel System mounts under and is fed with the original fuel pump. The assembly holds half-a- gallon of fuel to submerge the electric fuel pump to keep it cool for long life and no chance of fuel starvation. An internal regulator keeps the pressure at a consistent 58-psi which is ideal for reliable EFI performance.
A serviceable 10-micron fuel filter is supplied to keep the finest debris away from the injectors along with five feet of high pressure fuel hose, AN fittings and clamps. The precision machined extrusion is designed for strength and sealed tight. There is also an easy-to-view fuel pressure gauge installed for quick checks and heavy duty wire terminals are also supplied to complete the installation.
546-50004 supersedes 546-40003
Features:
- Uses a 340 LPH fuel pump and internal regulator for reliable fuel supply
- Capable of supporting the fuel demands of an 800-hp engine on gasoline
- 10-micron serviceable filter ensures the best filtration available
- Increased fuel capacity
- Supports E-85, alcohol or methanol based fuels
- Sturdy, versatile mounting bracket provides a side or bottom mount
- Includes fuel hose, AN fittings, return line fitting bung, and liquid-filled pressure gauge
Specifications:
Can you use existing return line ?
can this be mounted in trunk of vehicle
I would like to use on my fresh water ski boat to assist with Carb to EFI conversion. Can this be used in a marine application? Specifically, is it safe to have in an engine bay of a boat?
Is this a stand alone system as far as a pump, or is it just a regulator and filters? I need a pump with 55-60psi
Will this system also work with normal pump gas?
What is size of unit?
