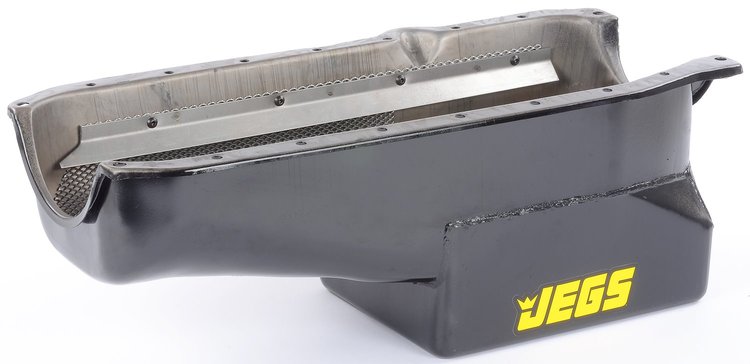

Street & Strip Oil Pan 1987-1992 Small Block Chevy
Product Discontinued
JEGSPART NUMBER: 555-50223

Street & Strip Oil Pan 1987-1992 Small Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy
Street & Strip Oil Pan
  • 1987-1992 Small Block Chevy
  • 1-Piece Rear Main
  • Right Hand Dipstick
  • Fits Most Chassis Except 1962-1967 Nova
  • 6-Quart Capacity Plus Filter

    Dimensions

    Fitment Includes LT series engines. Will not fit LS series engines

    Features:

    • Reinforced Pan Rails
    • Built-In Baffling
    • Trap Doors
    • Unidirectional Windage Screen
    • Crank Scraper
    • Magnetic Drain Plug
    • Accepts up to 3.875" stroke with steel rods
    • Use with Oil Pump Pickup Tubes 555-50240 & 555-50241

    Not designed for use with:
    Oil Pumps:

    • 689-M99HVS
    • 689-10551
    • 689-10552
    • 689-10552C
    • 689-10555
    • 689-10555C

    Pickup Tubes:

    • 689-12557
    • 689-12558
    • 689-12559

      • JEGS Street & Strip Oil Pans feature reinforced pan rails with built-in baffling, trap doors, unidirectional windage screen, and crank scraper for oil control and added horsepower. Magnetic drain plug included. Oil pump pickups are sold separately so you can choose based on pump type.

      JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Part TypeOil Pan
    Product LineJEGS Street & Strip Oil Pans
    BrandJEGS
    Package Height10.5
    Package Width15.6
    Package Length29.3
    Weight13.2 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    MaterialSteel
    Maximum Stroke With Oe Rod3.875 in (98.425 mm)
    Gaskets IncludedNo
    Oil Pan Depth8 in (203.2 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Crank Scraper IncludedYes
    Windage Tray IncludedYes
    Dipstick LocationPassenger side
    Kicked OutNo
    FinishBlack
    Stroker ClearancedYes
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
