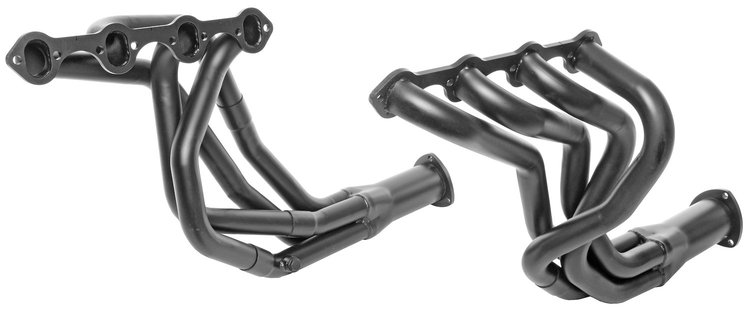

Painted Long Tube Headers for Ford 5.0L
555-30071
Product Q&A
View Now
Click image to zoom
Items You Need
Caspers Electronics 109016 - Oxygen Sensor Extension Harness Ford 36"
$20.99
JEGS 30701 - 3" Copper Collector Gaskets & Bolt Kit
$18.99
JEGS 40300 - Spark Plug Wire Boot Guards, Black [Set of 8]
$49.59
JEGS 30712 - 3/8"-16 Header Bolt Kit, Hex Head, 1" Long for AMC, Chevy and Ford
$14.39
JEGS 210251 - Exhaust Header Gaskets for Ford 260-351W, Dart, E351 Dual Bolt & Stock Ford
$28.79
| Ratings |
|---|
| Price |
| Brand |
Small Block Ford
| Automatic | Standard | ||
| Column | Floor | Column | Floor |
| No | Yes | No | Yes |
Specifications:
Part Type
Product Line
Bolts/Studs Included
Yes
Catalytic Converter(s) Included
No
Collector Attachment
3-bolt flange
Cross Over Pipe Included
No
Cylinder Head Port Shape
Round
Flange Style
Standard
Gaskets Included
Yes
Header Finish
Black
Header Material
Steel
Header Style
Full-length
Motor Mounts Included
No
Primary Tube Gauge
16-gauge
Reducers Included
Yes
Transmission Mount Included
No
Tube Direction
Down Swept
Tuned
Yes
Weld-Up
No
Collector Diameter
3 in (76.2 mm)
Header Flange Thickness
0.313 in (7.95 mm)
Primary Tube Diameter
1.625 in (41.3 mm)
Shipping Weight:
31.3
Package Height:
10
Package Depth:
37
Package Width:
19
Part Category:
Performance Parts
Part Fitment:
Semi Universal
30071 is rated
out of
5 by
20.
Rated 5 out of
5
by
Anonymous from
would these work for a 98 explorer 5.0
i have a ranger 5.0 swapped it came out of a 98 explorer.it looks like the same bolt up and was just wondering if it would work
Date published: 2023-01-17
Rated 5 out of
5
by
Tireslayer from
Sn95 swapped in a 93 fox body
I was wondering if these would fit or would I have to make room on the firewall
Date published: 2022-12-07
Rated 5 out of
5
by
JOEBE from
THEY WORK GREAT IN A SN95 MUSTANG!!!
I BROUGHT THESE 2 YRS AGO AND JUST INSTALL THEM ON A 1995 GT MUSTANG WORK GREAT ONLY TOOK 3 HRS TO INSTALL NICE HEADERS !!!
Date published: 2021-10-25
Rated 5 out of
5
by
Cookin28 from
82 Fox Mustang
Got the fox purring.....man these headers were well worth the Money. Installed myself took me 4 hours to install the driver side header and about an hour for the passenger side. It was well worth the time though.
Date published: 2020-10-14
Rated 5 out of
5
by
Grand pa from
Bought these hoping to work on gt40p heads. They will with little relieving on #4 cyl. Super price & quality plus they’re 1 5/8 tubes. Nice
Date published: 2020-04-11
Rated 5 out of
5
by
Burnoutbill from
Great price
Bought these a couple of years ago..
Been running them on a built 302 spraying nitrous... no problems at all... they are long tube headers.. install was easy " they are long tube headers, it's not a slip in fit"
Date published: 2019-03-08
Rated 5 out of
5
by
socom393 from
Perfect
Good quality and fitment. just as good as the BBK but for less than half the price
Date published: 2015-09-01
Rated 4 out of
5
by
Hcbomb from
Great headers for the price
These headers fit pretty good but do yourself a favor and cut the flange in between the 3 & 4 tube on the driver side header it will make it where you can install the headers without removing the steering shaft and you’ll need to use a newer model mini starter and be sure to install new starter before installing the passenger side header but other than those 2 things they fit great and aren’t too bad to install as long as you know those two issues before installing them great quality product otherwise
Date published: 2023-03-17
will these bolt onto the flow tech 2.5 inch mid pipe that jegs sells on their website
The Jegs 555-30071 header does not bolt to any factory style mid pipe.
Date published: 2023-09-18
What is the thread size of the O2 bungs my Bosch sensor won’t thread
The Jegs 555-30071 header uses standard 18mm O2 sizes.
Date published: 2023-06-05
Its compatible gt40p?
The Jegs 555-30071 header does not bolt to GT40P cylinder heads.
Date published: 2023-04-19
I have Canfield 54cc heads. Will these fit?
The Jegs 555-30071 header bolts to standard Ford bolt pattern.
Date published: 2023-04-19
Does the stock AIR injection (smog) pump need to be deleted to fit these headers in a 1990 Mustang?
The Jegs 555-30071 header does not fit smog pump equipment.
Date published: 2023-03-06
Will these work work the catless BBK X pipe? (The bbk x pipes are made for long tube headers)
The Jegs 555-30071 header will not bolt to a BBK X-pipe.
Date published: 2023-08-11
Will they fit with the engine in or do I have to lift the engine up
Each application is different, in most cases the engine will not need to be lifted.
Date published: 2020-01-21
Will this fit a 1982 ford f150 302 5.0
No, this header is designed to fit Mustang applications.
Date published: 2018-10-11
Will not fit with A.I.R. pump. Fits factory OEM 64-67 transmissions only. Installation on vehicles 78 and earlier with air conditioning will require purchase of 555-30782 bracket. 79 and later vehicles equipped with short compressor will re-use the original bracket. ...
Requires head pipe fabrication to Y-pipe. Includes O2 fittings. Will not fit with A.I.R. pump. Will not fit angle plug heads. Will not fit vehicles originally equipped with any engine other than SB-Chevy. Works with A/C. ... Small Block Chevy. ...
