JEGS 631080

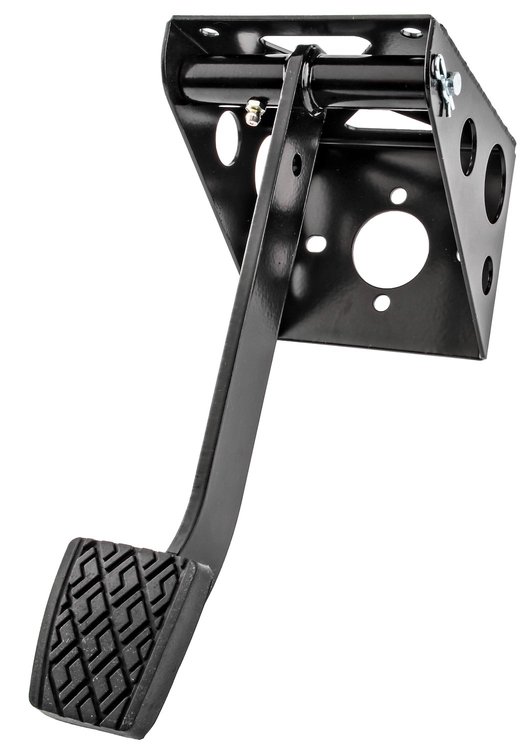

JEGS Brake Pedal/Clutch Pedal Assembly Swing Mount

555-631080

made in usa
Ships
Save $20 Off $250, $50 Off $500, $100 Off $1,000, $150 Off $2,000. Promo Code: SAVEMORE exclusions apply

$74.99
$67.49
SAVE $7.50
JEGS Brake Pedal/Clutch Pedal Assembly Swing Mount $67.49
Out of stock
More than 10 available
QTY
Brake Pedal/Clutch Pedal Assembly
  • Swing Mount
  • For Manual Brake Applications
  • Multi-Fit Bolt Pattern
  • 6.25:1 Pedal Ratio
  • Includes Bronze Bushing on Pivot
  • Made in the USA
  • Items You May Also Consider

    JEGS 631080 Details

    Pedal Assembly

    Suggested Master Cylinders

    Specifications:

    Quantity
    Sold individually
    Balance Bar Included
    No
    Master Cylinder Included
    No
    Pedal Material
    Steel
    Pedal Mounting Location
    Firewall mount
    Pedal Pad Finish
    Black
    Pedal Type
    Brake
    Throttle Cable Included
    No
    Pedal Pad Shape
    Rectangle
    Pedal Length (in.)
    2.375
    Pedal Width (in.)
    2
    Shipping Weight:
    29.48
    Package Height:
    15.750
    Package Width:
    15.750
    Package Depth:
    14.500
    Manufacturer's Part Number:
    PBUFT12504

    JEGS brake pedal or clutch pedal assembly is a swing mount style pedal for use with one forward facing master cylinder. This pedal is less complicated and less expensive than balance-bar type brake pedals when you consider the cost of the pedal, two master cylinders, balance bar and the adjustment cable. Add an optional adjustable proportioning valve (available separately) to allow easy adjustment of rear brake pressure in custom applications.

    The pedal mount features a multi-fit bolt pattern that works with most racing & many O.E.M. master cylinders (i.e. Wilwood, Tilton, Girling, US Brake, Howe, Coleman, JEGS, Strange, Aerospace, some Chrysler and some GM). Use an O.E.M. style dual in-line master cylinder for Brakes or a racing style single master cylinder for a Hydraulic Clutch. See the attached chart under 'Details/More info' for suggested master cylinders for use with this pedal assembly.

    The pedal ratio is 6.25:1 and is suitable for manual brakes in most applications. This pedal is not designed for use with a power brake booster. The clevis is sold separately since there are two sizes to fit different master cylinders. Most single master cylinders use 5/16"-24 thread on the pushrod and most O.E.M. style dual in-line master cylinders use a 3/8"-24 thread.

    The pedal is painted black and features a production style rubber pedal pad. Ideal for use in kit cars, street rods and racing.

    631080 is rated 4.8 out of 5 by 6.
    Rated 5 out of 5 by from General start Took 2 of these as the base to modify, installing a mustang gt hydro boost master cylinder into a 1950 ford f1. This offered the best “beginning “ that I could find in the market.
    Date published: 2019-04-28
    Rated 5 out of 5 by from Swing pedals Assembled in an old CJ and they look great . Very pleased
    Date published: 2017-11-25
    Rated 5 out of 5 by from Can't beat it for the price I bought this for a hydraulic clutch pedal for a stick swap in my 70 C10 and it was perfect
    Date published: 2015-11-19
    Rated 5 out of 5 by from Great product Bought this a few months ago and it looks great and works great.
    Date published: 2015-06-15
    Rated 5 out of 5 by from Good quality product. I bought two, one for brake - one for clutch. It is easy to space and adjust them the way I want.
    Date published: 2014-11-02
    Rated 4 out of 5 by from Easy fit I bought this for an old Jeep Grand Cherokee I'm switching from automatic to manual and it works well! The case frame is rather large and bulky, but it still works well and housed the master cylinder well.
    Date published: 2019-06-19
