Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

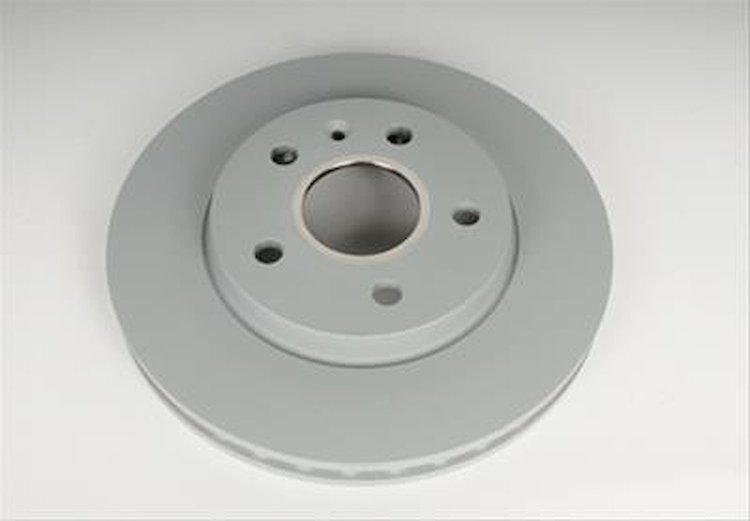

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height3.6
Package Width12.5
Package Length13.1
Weight19.04 PG
Part CategoryReplacement Parts
Overall Height2.01 in (51.1 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter2.66 in (67.564 mm)
Abs Sensor Ring IncludedNo
Discard Thickness1.062 in (26.975 mm)
Pad Contact Surface Width (Mm)54
Center Hole Diameter (Mm)67.45
Overall Rotor Diameter (Mm)296
Nominal Thickness (Mm)30
Center Hole Diameter2.66 in (67.564 mm)
Disc FinishTurned
Bolt Hole Quantity5
Overall Rotor Diameter11.65 in (295.9 mm)
Bolt Circle Diameter (Mm)120
Pitch Circle Diameter (Mm)120
Discard Thickness (Mm)27.00
Overall Height (Mm)51
PositionFront
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter4.72 in (119.9 mm)
Pad Contact Surface Width2.1
Hat FinishCoated
Thickness (Mm)30
Thickness1.181 in (30 mm)
Lug Quantity5
Bolt Circle Diameter4.72
Rust Resistant CoatingYes
Outside Diameter (Mm)294
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)16.4
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter11.5 in (292.1 mm)
Nominal Thickness1.18
Max Center Hole Diameter (Mm)67.45
Max Bolt Hole Diameter0.645 in (16.383 mm)
Grade TypeRegular
Vendor Part Number13501319
Package Qty1
Package TypeEA
