Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

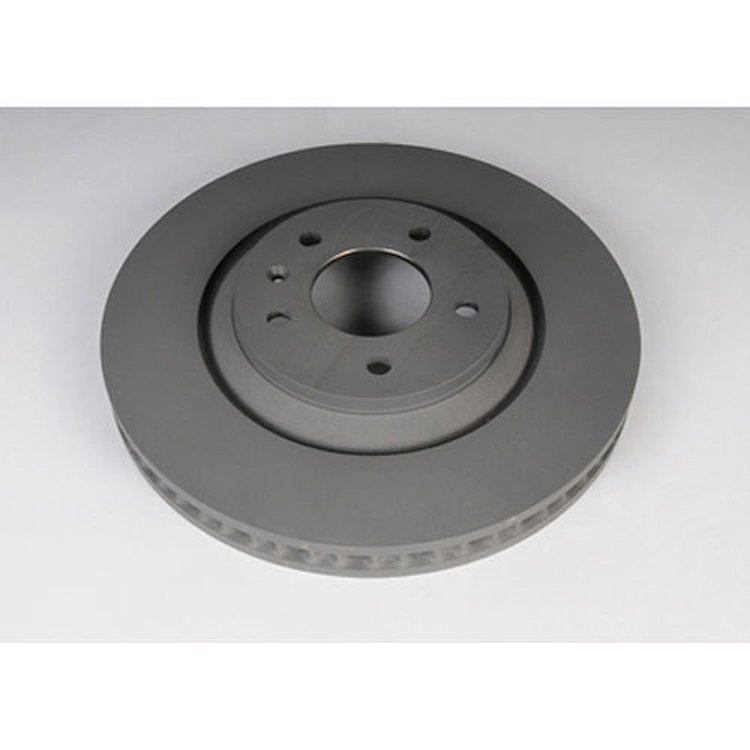

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height5.5
Package Width15.62
Package Length15.62
Weight26.0 PG
Part CategoryReplacement Parts
Overall Height2.05 in (52.1 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter2.78 in (70.612 mm)
Abs Sensor Ring IncludedNo
Discard Thickness1.209 in (30.709 mm)
Pad Contact Surface Width (Mm)57.0
Center Hole Diameter (Mm)70.72
Overall Rotor Diameter (Mm)323
Nominal Thickness (Mm)32.004
Center Hole Diameter2.78 in (70.612 mm)
Disc FinishTurned
Bolt Hole Quantity5
Overall Rotor Diameter12.72 in (323.1 mm)
Bolt Circle Diameter (Mm)115
Pitch Circle Diameter (Mm)115
Discard Thickness (Mm)30.708
Overall Height (Mm)51.96
PositionFront
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter4.53 in (115.1 mm)
Pad Contact Surface Width2.2
Hat FinishPainted
Thickness (Mm)32.14
Thickness1.265 in (32.1 mm)
Lug Quantity5
Bolt Circle Diameter4.5
Rust Resistant CoatingYes
Outside Diameter (Mm)322.5
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)14.25
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter12.72 in (323.1 mm)
Nominal Thickness1.265 in (32.1 mm)
Max Center Hole Diameter (Mm)70.72
Max Bolt Hole Diameter0.561 in (14.249 mm)
Grade TypeRegular
Vendor Part Number177-0915
Package Qty1
Package TypeEA
