Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

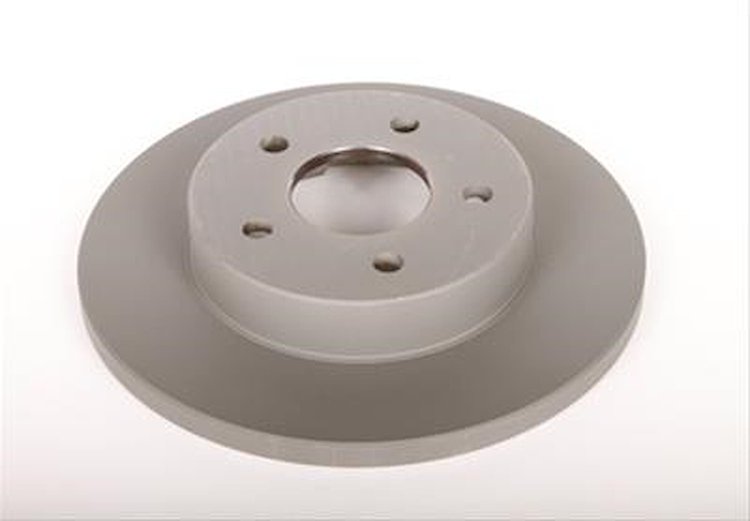

- Rear Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height3.3
Package Width12.3
Package Length13.1
Weight12.0 PG
Part CategoryReplacement Parts
Overall Height1.72 in (43.7 mm)
Number Of Lugs5
Disc ConstructionSolid
Max Center Hole Diameter2.59 in (65.786 mm)
Abs Sensor Ring IncludedNo
Discard Thickness0.472 in (11.989 mm)
Pad Contact Surface Width (Mm)47.0
Center Hole Diameter (Mm)65.74
Overall Rotor Diameter (Mm)270
Nominal Thickness (Mm)14
Center Hole Diameter2.59 in (65.786 mm)
Disc FinishCoated
Bolt Hole Quantity5
Overall Rotor Diameter10.63 in (270 mm)
Bolt Circle Diameter (Mm)110.0
Pitch Circle Diameter (Mm)110
Discard Thickness (Mm)12
Overall Height (Mm)43.66
PositionRear
Solid Or Vented Type RotorSolid
MaterialCast Iron
Pitch Circle Diameter4.33 in (110 mm)
Pad Contact Surface Width1.9
Hat FinishCoated
Thickness (Mm)14
Thickness0.551 in (14 mm)
Bolt Circle Diameter4.331
Rust Resistant CoatingYes
Outside Diameter (Mm)270
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)14
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter10.6 in (269.2 mm)
Nominal Thickness0.551
Max Center Hole Diameter (Mm)65.74
Max Bolt Hole Diameter0.551 in (13.995 mm)
Grade TypePerformance
Vendor Part Number177-1016
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
