Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

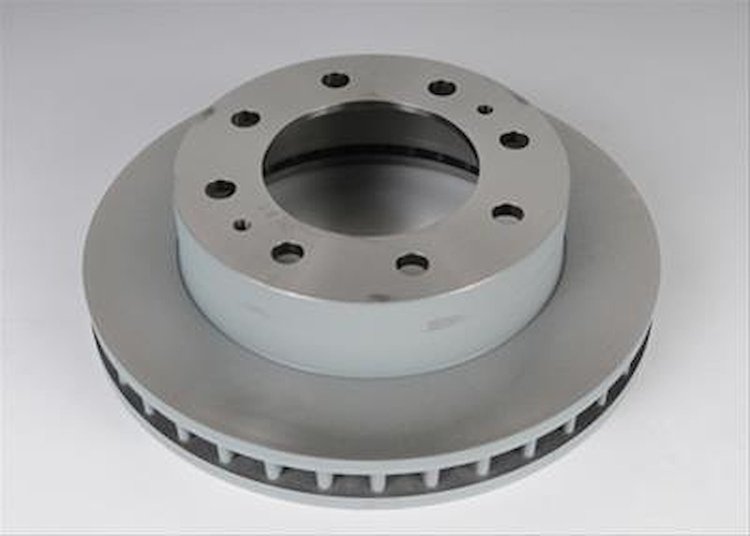

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height3.8
Package Width13.3
Package Length13.5
Weight26.0 PG
Weight24.95
Overall Rotor Diameter (Mm)325mm
Center Hole Diameter114
Good Maintenance Practices - Section 1 - Bullet 1Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
Number Of Lugs8
Directional Or Non-Directional Brake SurfaceNon-Directional
Disc ConstructionVented
Good Maintenance Practices - Section 1 - Bullet 4Check the thickness of your brake pads.
Max Center Hole Diameter4.65 in (118.11 mm)
Abs Sensor Ring IncludedNo
Good Maintenance Practices - Section 1 - Bullet 2Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Good Maintenance Practices - Section 1 - Bullet 3Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Disc FinishGround
Pad Contact Surface Width (Mm)49
Center Hole Diameter (Mm)118.04
Stud/Lug Hole Quantity8
Product DescriptionGM Genuine Parts Disc Brake Rotors are designed, engineered, and tested to rigorous standards, and are backed by General Motors. GM Genuine Parts OE Brake Rotors are the true OE parts installed during production or validated by General Motors for GM vehicles. GM engineers spent many years developing, testing, and validating brake rotor solutions for each brake corner for every GM veh icle. GM Genuine OE rotors are designed, engineered, tested to rigorous standards and backed by General Motors.GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE). ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Bolt Circle Diameter (Mm)165.1
Nominal Thickness (Mm)38.10
ConstructionFull Cast
Front Brake TypeVarious - Application Specific
Width (In)13.3
Pad Contact Surface Width1.9
Hat FinishPainted
Overall Rotor Diameter12.8 in (325.1 mm)
Mounting Bolt Hole Circle Diameter6.5
Lug Quantity8
Pitch Circle Diameter (Mm)165.1
Discard Thickness (Mm)36.5
Length (In)13.5
Abs Tone Ring IncludedNo
Body TypeVarious - Application Specific
Overall Height (Mm)90
Surface TypeSmooth
Bolt Circle Diameter (In)6.5
PositionFront
Outside Diameter12.6
Part CategoryReplacement Parts
Overall Height3.7
Pitch Circle Diameter6.5 in (165.1 mm)
Good Maintenance Practices - Section 2 - Bullet 3Inspection of wheel bearings and grease seals.
Good Maintenance Practices - Section 2 - Bullet 4Parking brake adjustments (as needed).
Programming RequiredNo
Thickness (Mm)37.8
Discard Thickness1.44
Thickness1.488 in (37.8 mm)
Good Maintenance Practices - Section 2 - Bullet 1Inspection of the brake hoses for brittleness or cracking.
Rear Brake TypeVarious - Application Specific
Features &#38; Benefits - Bullet 10GM regularly updates production and service part designs to integrate new materials and technologies
Bolt Circle Diameter6.50
Good Maintenance Practices - Section 2 - Bullet 2Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Visible ridges on rotor surface.
Outside Diameter (Mm)324.8
Signs Of Wear &#38; Troubleshooting - Section 1 - HeaderBrake rotor signs of wear include:
Features &#38; Benefits - Bullet 6Designed to meet GM resonant frequency separation requirements to help reduce the risk of brake noise
Includes Abs Sensor RingNo
Brake SystemVarious - Application Specific
Features &#38; Benefits - Bullet 7Designed to customer vehicle parameters to resist thermal roughness
Inside Diameter184.36
Features &#38; Benefits - Bullet 8GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
Max Bolt Hole Diameter (Mm)16.25
Features &#38; Benefits - Bullet 9GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Features &#38; Benefits - Bullet 2OE brake components are specifically designed to work with your GM vehicle safety systems
Bolt Hole Quantity8
Features &#38; Benefits - Bullet 3FNC rotors are hardened and strengthened during an extended manufacutirng process that helps provides an extra defensive barrier against the corrosive threat of water, sale, and even acid rain
Features &#38; Benefits - Bullet 4OE brake systems and components are required to meet Federal Motor Vehicle Safety Standards (FMVSS)
Max Center Hole Diameter (Mm)118.16
Features &#38; Benefits - Bullet 5Carbon ceramic brake rotors are used in high performance vehicles because the carbon fibers provide strength and the ceramic rotors are lighter than standard iron
Max Bolt Hole Diameter0.639 in (16.231 mm)
Height (Mm)88.9
Features &#38; Benefits - Bullet 1Most GM OE brake rotors sold in the U.S are Ferritic Nitro-Carburized, or FNC rotor
Solid Or Vented Type RotorVented
Good Maintenance Practices - Section 1 - HeaderThe following inspections and maintenance procedures can help prevent potential brake problems.
Good Maintenance Practices - Section 1 - Bullet 9The following should be conducted by a qualified technician:
MaterialCast Iron
Bearings IncludedNo
Stud/Lug Hole Circle Diameter6.5
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Vehicle pulls to the left or right when brakes are applied.
Height (In)3.5
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Chirping, grinding, or squeaking noises when braking.
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Difficulty stopping the vehicle.
Rust Resistant CoatingYes
SlottedNo
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4A low or sinking brake pedal.
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5Braking causes the pedal and/or steering wheel to pulsate/vibrate (not to be confused with normal ABS operation.
Conventional Or Drum-In-Hat Type RotorConventional
Part FitmentDirect Fit
Nominal Thickness1.5
Grade TypeOE
Vendor Part Number177-1038
Package Qty1
Package TypeEA
