Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

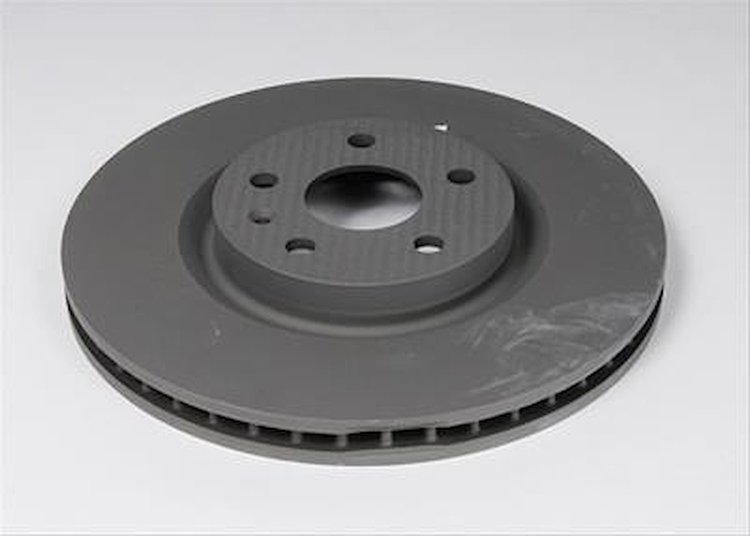

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height5.5
Package Width15.75
Package Length15.88
Weight24.43 PG
Part CategoryReplacement Parts
Overall Height2.02 in (51.3 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter2.66 in (67.564 mm)
Abs Sensor Ring IncludedNo
Discard Thickness1.122 in (28.499 mm)
Pad Contact Surface Width (Mm)65.0
Center Hole Diameter (Mm)67.42
Overall Rotor Diameter (Mm)345
Nominal Thickness (Mm)30.100
Center Hole Diameter2.65 in (67.31 mm)
Disc FinishTurned
Bolt Hole Quantity5
Overall Rotor Diameter13.58 in (344.9 mm)
Bolt Circle Diameter (Mm)120.0
Pitch Circle Diameter (Mm)120
Discard Thickness (Mm)28.500
Body TypeVarious - Application Specific
Overall Height (Mm)51.25
PositionFront
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter4.72 in (119.9 mm)
Pad Contact Surface Width2.5
Hat FinishPainted
Thickness (Mm)30.1
Thickness1.185 in (30.1 mm)
Lug Quantity5
Bolt Circle Diameter4.72
Rust Resistant CoatingYes
Outside Diameter (Mm)345.0
Includes Abs Sensor RingNo
Brake SystemPower
SlottedNo
Max Bolt Hole Diameter (Mm)16.7
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter13.58 in (344.9 mm)
Nominal Thickness1.185 in (30.1 mm)
Max Center Hole Diameter (Mm)67.47
Max Bolt Hole Diameter0.657 in (16.688 mm)
Grade TypeRegular
Vendor Part Number177-1065
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
