Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

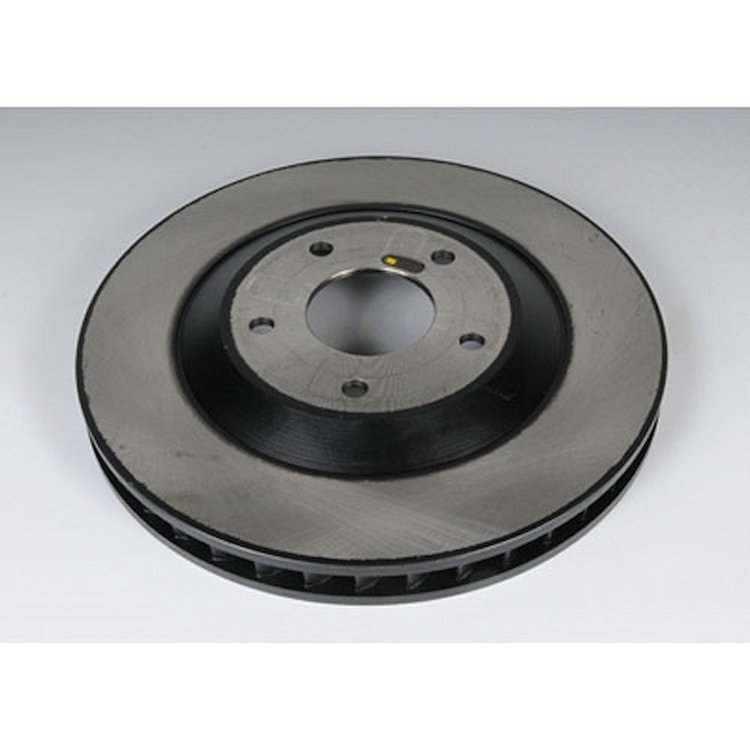

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height3.3
Package Width14.3
Package Length14.7
Weight17.97 PG
Part CategoryReplacement Parts
Overall Height1.76 in (44.7 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter2.78 in (70.612 mm)
Abs Sensor Ring IncludedNo
Discard Thickness1.192 in (30.277 mm)
Pad Contact Surface Width (Mm)54
Center Hole Diameter (Mm)70.65
Overall Rotor Diameter (Mm)325
Nominal Thickness (Mm)32
Center Hole Diameter2.78 in (70.612 mm)
Disc FinishGround
Bolt Hole Quantity5
Overall Rotor Diameter12.8 in (325.1 mm)
Bolt Circle Diameter (Mm)120.6
Pitch Circle Diameter (Mm)120.65
Discard Thickness (Mm)30.30
Overall Height (Mm)44.7
PositionFront Left
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter4.75 in (120.7 mm)
Pad Contact Surface Width2.1
Hat FinishPainted
Thickness (Mm)32
Thickness1.259 in (32 mm)
Lug Quantity5
Bolt Circle Diameter4.75 in (120.65 mm)
Rust Resistant CoatingYes
Outside Diameter (Mm)325
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)13.47
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter12.8 in (325.1 mm)
Nominal Thickness1.259 in (32 mm)
Max Center Hole Diameter (Mm)70.72
Max Bolt Hole Diameter0.53 in (13.462 mm)
Grade TypeRegular
Vendor Part Number177-852
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
