Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

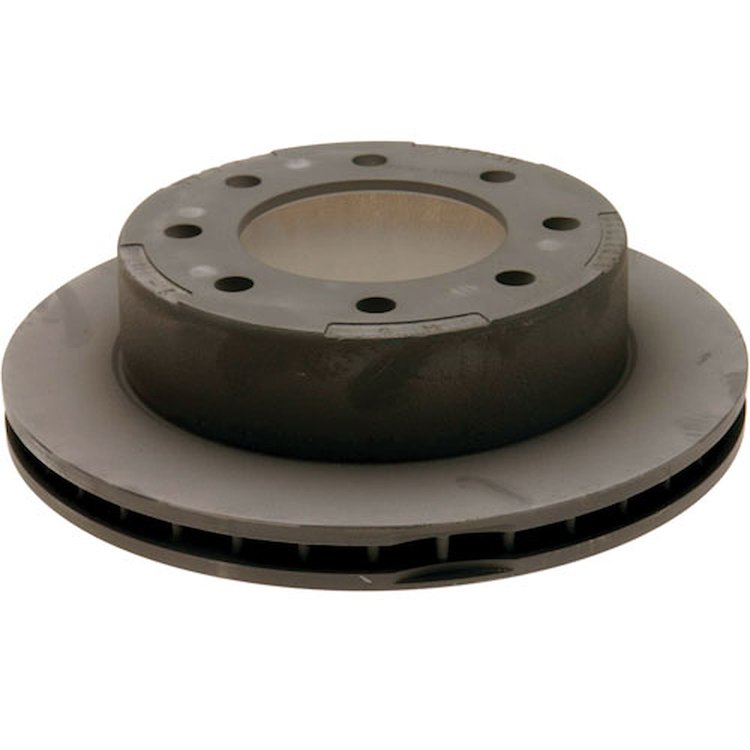

- Rear Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height4.9
Package Width15.3
Package Length15.3
Weight25.0 PG
Part CategoryReplacement Parts
Overall Height3.42 in (86.9 mm)
Number Of Lugs8
Disc ConstructionVented
Max Center Hole Diameter4.63 in (117.602 mm)
Abs Sensor Ring IncludedNo
Discard Thickness1.082 in (27.483 mm)
Pad Contact Surface Width (Mm)48
Center Hole Diameter (Mm)117.55
Overall Rotor Diameter (Mm)330.4
Nominal Thickness (Mm)29.1
Center Hole Diameter4.63 in (117.602 mm)
Front Brake TypeVarious - Application Specific
Disc FinishTurned
Bolt Hole Quantity8
Overall Rotor Diameter13.01 in (330.5 mm)
Bolt Circle Diameter (Mm)165.1
Pitch Circle Diameter (Mm)165.1
Discard Thickness (Mm)26.49
Body TypeVarious - Application Specific
Overall Height (Mm)86.95
PositionRear
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter6.5 in (165.1 mm)
Pad Contact Surface Width1.8
Hat FinishCoated
Thickness (Mm)28.9
Thickness1.137 in (28.9 mm)
Rear Brake TypeVarious - Application Specific
Lug Quantity8
Bolt Circle Diameter6.50
Rust Resistant CoatingYes
Outside Diameter (Mm)330.2
Includes Abs Sensor RingNo
Brake SystemVarious - Application Specific
SlottedNo
Max Bolt Hole Diameter (Mm)16.53
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter13.01 in (330.5 mm)
Nominal Thickness1.145 in (29.1 mm)
Max Center Hole Diameter (Mm)117.65
Max Bolt Hole Diameter0.65 in (16.51 mm)
Grade TypeRegular
Vendor Part Number177-860
Package Qty1
Package TypeEA
