Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

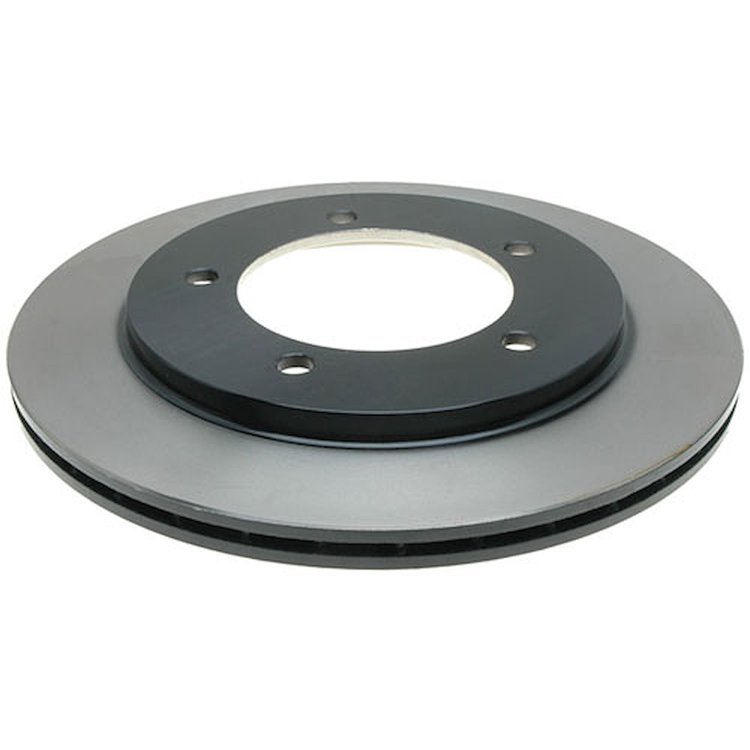

- Front Disc Brake Rotor Assembly
Part TypeBrake Rotor
BrandACDELCO
Package Height2.3
Package Width12.3
Package Length12.3
Weight10.8 PG
Part CategoryReplacement Parts
Overall Height1.15 in (29.2 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter4.27 in (108.458 mm)
Abs Sensor Ring IncludedNo
Discard Thickness0.591 in (15.011 mm)
Pad Contact Surface Width (Mm)41.05
Center Hole Diameter (Mm)108.46
Overall Rotor Diameter (Mm)286.77
Nominal Thickness (Mm)17.018
Center Hole Diameter4.27 in (108.458 mm)
Disc FinishGround
Bolt Hole Quantity5
Overall Rotor Diameter11.29 in (286.8 mm)
Bolt Circle Diameter (Mm)139.7
Pitch Circle Diameter (Mm)139.7
Discard Thickness (Mm)15.011
Overall Height (Mm)29.21
PositionFront
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter5.5 in (139.7 mm)
Pad Contact Surface Width1.6
Hat FinishTurned
Thickness (Mm)17.018
Thickness0.67 in (17 mm)
Bolt Circle Diameter5.5 in (139.7 mm)
Rust Resistant CoatingYes
Outside Diameter (Mm)286.8
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)108.46
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter11.3 in (287 mm)
Nominal Thickness0.67 in (17 mm)
Grade TypeRegular
Vendor Part Number18A1106
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
