Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

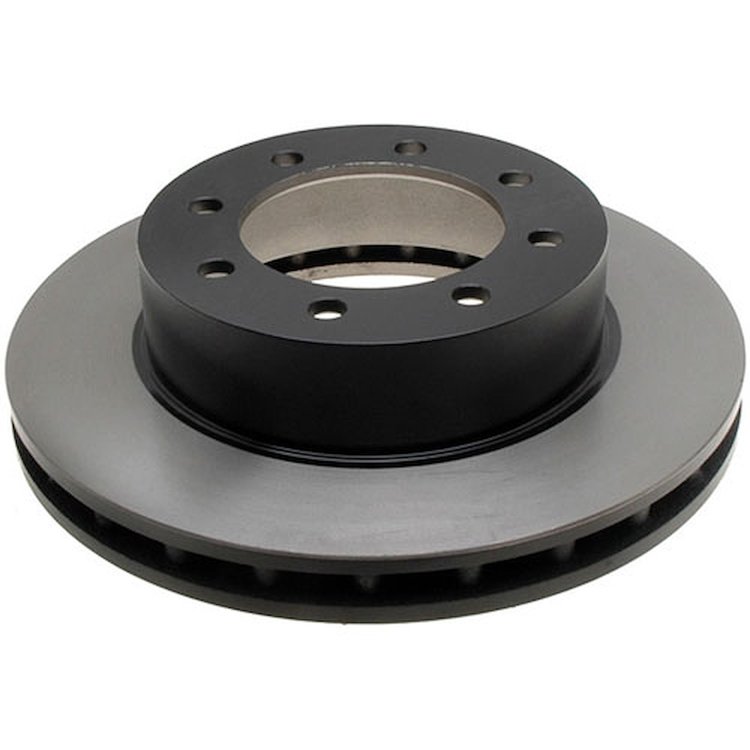

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height5.6
Package Width16.1
Package Length16.1
Weight36.4 PG
Part CategoryReplacement Parts
Overall Height3.86 in (98 mm)
Number Of Lugs8
Disc ConstructionVented
Max Center Hole Diameter5.09 in (129.286 mm)
Abs Sensor Ring IncludedNo
Discard Thickness1.417 in (35.992 mm)
Pad Contact Surface Width (Mm)65.55
Center Hole Diameter (Mm)129.29
Overall Rotor Diameter (Mm)369.06
Nominal Thickness (Mm)37.973
Center Hole Diameter5.09 in (129.286 mm)
Disc FinishGround
Bolt Hole Quantity8
Overall Rotor Diameter14.53 in (369.1 mm)
Bolt Circle Diameter (Mm)170
Pitch Circle Diameter (Mm)6.69
Discard Thickness (Mm)35.991
Overall Height (Mm)98.04
PositionFront
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter170 in (4318 mm)
Pad Contact Surface Width2.6
Hat FinishTurned
Thickness (Mm)37.973
Thickness1.495 in (38 mm)
Bolt Circle Diameter170 in (4318 mm)
Rust Resistant CoatingYes
Outside Diameter (Mm)369.06
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)129.29
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter14.5 in (368.3 mm)
Nominal Thickness1.495 in (38 mm)
Grade TypeRegular
Vendor Part Number18A1194
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
