Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

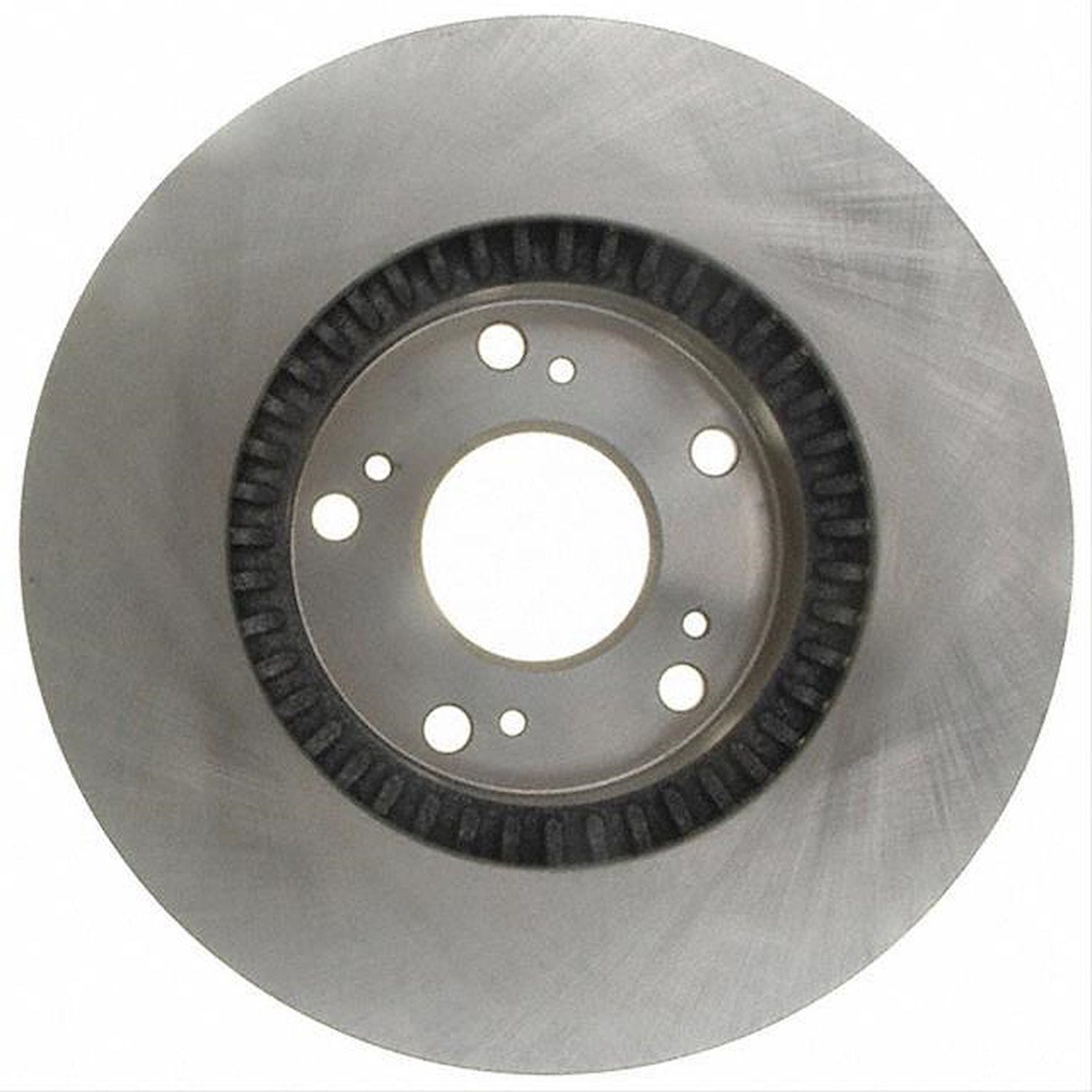

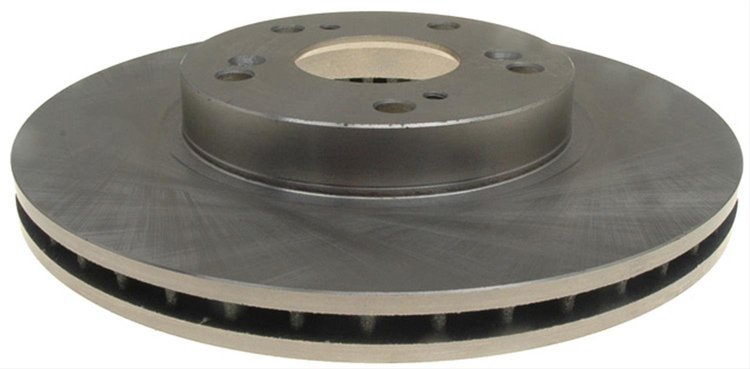

- ROTOR FRT BRK
Part TypeBrake Rotor
BrandACDELCO
Package Height2.3
Package Width11.2
Package Length11.2
Weight13.2 PG
Part CategoryReplacement Parts
Overall Height1.86 in (47.2 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter2.53 in (64.262 mm)
Discard Thickness0.827 in (21.006 mm)
Center Hole Diameter (Mm)64.26
Overall Rotor Diameter (Mm)281.69
Nominal Thickness (Mm)22.987
Center Hole Diameter2.53 in (64.262 mm)
Bolt Hole Quantity5
Overall Rotor Diameter11.09 in (281.7 mm)
Bolt Circle Diameter (Mm)114.3
Pitch Circle Diameter (Mm)114.3
Discard Thickness (Mm)21.005
Overall Height (Mm)47.24
PositionFront
MaterialCast Iron
Pitch Circle Diameter4.5 in (114.3 mm)
Thickness (Mm)22.987
Thickness0.905 in (23 mm)
Bolt Circle Diameter4.5 in (114.3 mm)
Outside Diameter (Mm)281.69
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)64.26
Outside Diameter11.09 in (281.7 mm)
Nominal Thickness0.905 in (23 mm)
Vendor Part Number18A1323
Package Qty1
Package TypeEA
