Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

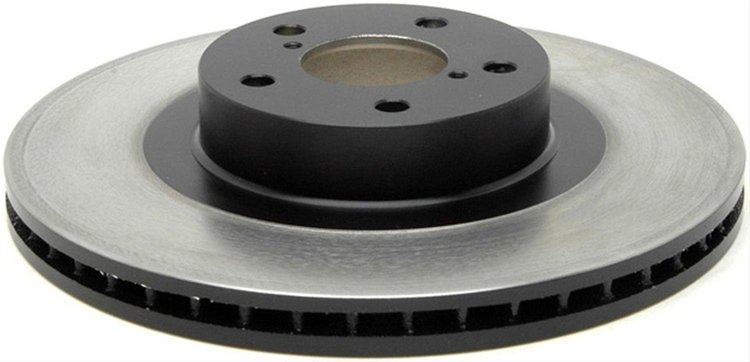

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height2.8
Package Width12.3
Package Length12.3
Weight14.7 PG
Part CategoryReplacement Parts
Overall Height2.23 in (56.6 mm)
Number Of Lugs5
Disc ConstructionVented
Max Center Hole Diameter2.29 in (58.166 mm)
Abs Sensor Ring IncludedNo
Discard Thickness0.866 in (21.996 mm)
Pad Contact Surface Width (Mm)53.25
Center Hole Diameter (Mm)58.17
Overall Rotor Diameter (Mm)293.12
Nominal Thickness (Mm)24.003
Center Hole Diameter2.29 in (58.166 mm)
Disc FinishGround
Bolt Hole Quantity5
Overall Rotor Diameter11.54 in (293.1 mm)
Bolt Circle Diameter (Mm)100
Pitch Circle Diameter (Mm)100
Discard Thickness (Mm)21.996
Overall Height (Mm)56.64
PositionFront
Solid Or Vented Type RotorVented
MaterialCast Iron
Pitch Circle Diameter3.93 in (99.8 mm)
Pad Contact Surface Width2.1
Hat FinishTurned
Thickness (Mm)24.003
Thickness0.945 in (24 mm)
Bolt Circle Diameter3.9
Rust Resistant CoatingYes
Outside Diameter (Mm)293.2
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)58.17
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter11.5 in (292.1 mm)
Nominal Thickness0.945 in (24 mm)
Grade TypeRegular
Vendor Part Number18A1340
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
