Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

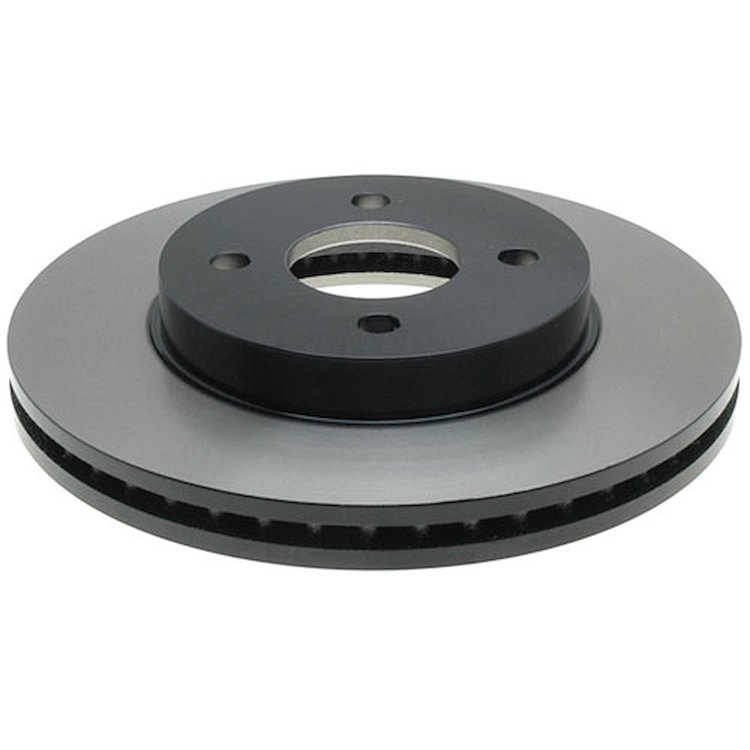

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height2.25
Package Width10.38
Package Length11.5
Weight13.2 PG
Weight13.2
Part CategoryReplacement Parts
Overall Height46.75
Number Of Lugs4
Programming RequiredNo
Disc ConstructionVented
Discard Thickness0.866
Center Bore Diameter (Mm)60.2mm
Max Center Hole Diameter2.38 in (60.452 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)256.03mm
Center Bore Diameter (In)2.4in
Center Hole Diameter60.2
Pad Contact Surface Width (Mm)50
Center Hole Diameter (Mm)60.45
Directional Or Non-Directional Brake SurfaceNon-Directional
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Nominal Thickness (Mm)24.003
Features & Benefits - Bullet 2Black coating on hat and vanes
Disc FinishGround
Front Brake TypeVarious - Application Specific
Bolt Hole Quantity4
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Overall Rotor Diameter10.08 in (256 mm)
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)100
Stud/Lug Hole Quantity4
Discard Thickness (Mm)21.996
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity4
Overall Height (Mm)46.74
Height (Mm)46.7
PositionFront
Bolt Circle Diameter (Mm)100
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Mounting Bolt Hole Diameter13.85
Pitch Circle Diameter3.93 in (99.8 mm)
ConstructionFull Cast
Solid Or Vented Type RotorVented
Thickness (Mm)24.003
Width (In)11.5
MaterialCast Iron
Thickness0.945 in (24 mm)
Pad Contact Surface Width50
Rear Brake TypeVarious - Application Specific
Bolt Circle Diameter3.9
Hat FinishTurned
Mounting Bolt Hole Circle Diameter99.8
Outside Diameter (Mm)256.03
Height (In)1.8
Includes Abs Sensor RingNo
Rust Resistant CoatingYes
Max Bolt Hole Diameter (Mm)60.45
SlottedNo
Length (In)10.4
Conventional Or Drum-In-Hat Type RotorConventional
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)3.9
Grade TypeRegular
Part FitmentDirect Fit
Outside Diameter256.05
Nominal Thickness0.945
Vendor Part Number18A1585
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
