Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

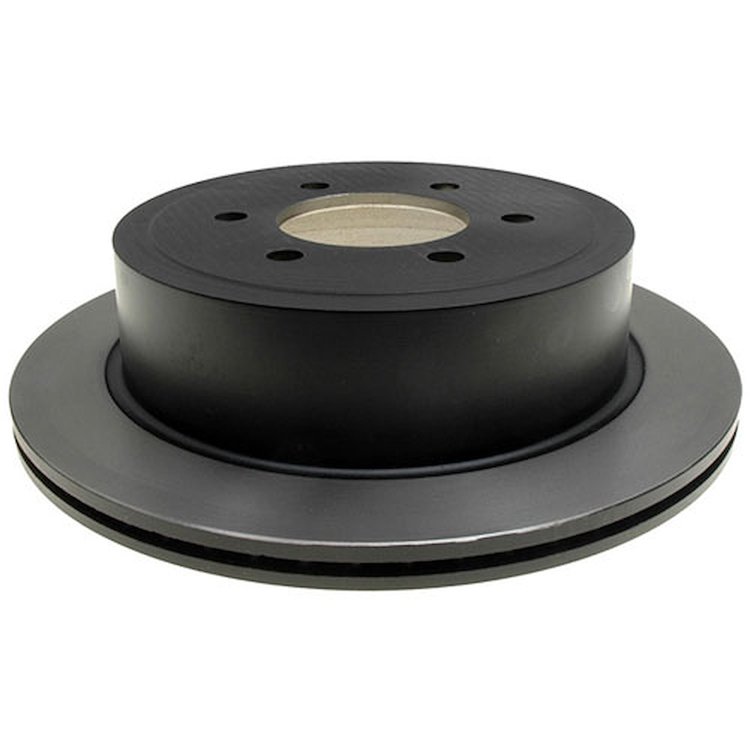

- Rear Disc Brake Rotor Assembly
Part TypeBrake Rotor
BrandACDELCO
Package Height4.2
Package Width14.1
Package Length14.1
Weight25.0 PG
Weight25
Part CategoryReplacement Parts
Overall Height86.1
Number Of Lugs6
Programming RequiredNo
Disc ConstructionVented
Discard Thickness18.5
Center Bore Diameter (Mm)90.1mm
Max Center Hole Diameter3.55 in (90.17 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)347.98mm
Center Bore Diameter (In)3.5in
Center Hole Diameter3.55
Pad Contact Surface Width (Mm)43.95
Center Hole Diameter (Mm)90.17
Directional Or Non-Directional Brake SurfaceNon-Directional
Features & Benefits - Bullet 2Premium aftermarket replacement part
Disc FinishGround
Nominal Thickness (Mm)19.989
Bolt Hole Quantity6
Features & Benefits - Bullet 3Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Stud/Lug Hole Quantity6
Overall Rotor Diameter13.7 in (348 mm)
Product DescriptionACDelco Gold (Professional) Black Hat Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity6
Height (Mm)86.1
Pitch Circle Diameter (Mm)135
Bolt Circle Diameter (Mm)135
Discard Thickness (Mm)18.491
Features &#38; Benefits - Bullet 1Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Overall Height (Mm)86.11
Mounting Bolt Hole Diameter0.604
PositionRear
ConstructionFull Cast
Solid Or Vented Type RotorVented
Pitch Circle Diameter5.31 in (134.9 mm)
Width (In)14.1
MaterialCast Iron
Pad Contact Surface Width1.7
Hat FinishTurned
Thickness (Mm)19.989
Thickness0.787 in (20 mm)
Bolt Circle Diameter5.3
Mounting Bolt Hole Circle Diameter5.315
Height (In)3.4
Outside Diameter (Mm)347.98
Rust Resistant CoatingYes
Includes Abs Sensor RingNo
SlottedNo
Length (In)14.1
Conventional Or Drum-In-Hat Type RotorDrum-In-Hat
Max Bolt Hole Diameter (Mm)90.17
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)5.3
Part FitmentDirect Fit
Grade TypeRegular
Outside Diameter348
Nominal Thickness0.787
Vendor Part Number18A1627
Package Qty1
Package TypeEA
