Vehicle Info Needed

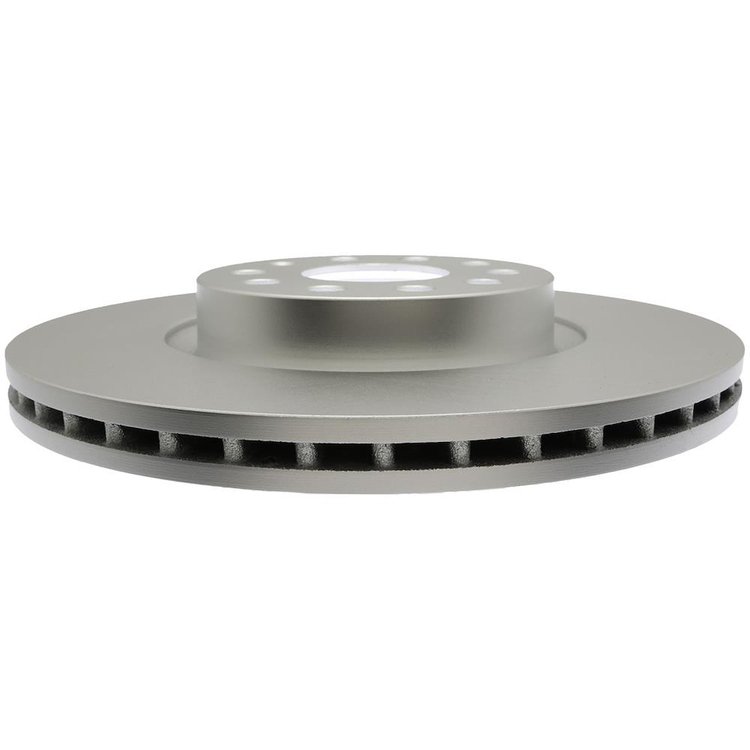

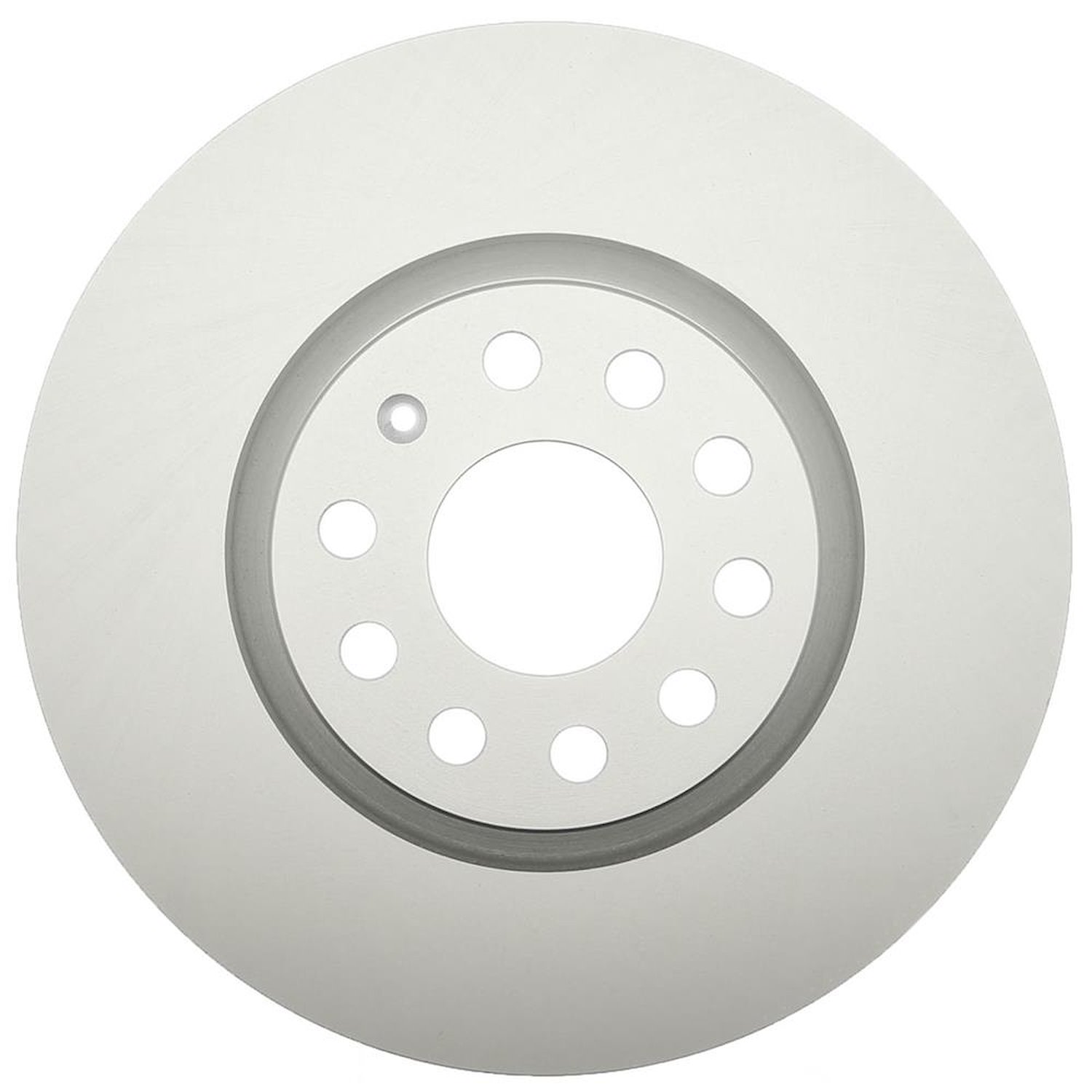

Lowest Price GuaranteePart TypeBrake Rotor
BrandACDELCO
Weight17.5
Overall Height1.96
Programming RequiredNo
Discard Thickness0.866
Center Bore Diameter (Mm)66mm
Center Bore Diameter (In)2.6in
Center Hole Diameter2.56
Directional Or Non-Directional Brake SurfaceNon-Directional
Features & Benefits - Bullet 2Economically priced
Disc FinishDirectional
Bolt Hole Quantity5
Features & Benefits - Bullet 3Provides the performance you expect from ACDelco
Stud/Lug Hole Quantity9
Product DescriptionACDelco Advantage Coated Disc Brake Rotor is an economical replacement component for one or more of the following vehicle systems: brake. This dependable aftermarket rotor offers quality at a competitive price. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity9
Height (Mm)48.3
Bolt Circle Diameter (Mm)112.1
Features &#38; Benefits - Bullet 1Dependable replacement
Mounting Bolt Hole Diameter15.15
ConstructionFull Cast
Solid Or Vented Type RotorVented
Width (In)2.4
MaterialCast Iron
Hat FinishPlain
Mounting Bolt Hole Circle Diameter4.409
Height (In)1.9
Rust Resistant CoatingYes
SlottedNo
Length (In)13.9
Conventional Or Drum-In-Hat Type RotorConventional
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.413
Outside Diameter12.283
Nominal Thickness25
Grade TypeStandard Replacement
Vendor Part Number18A1827AC
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
