Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

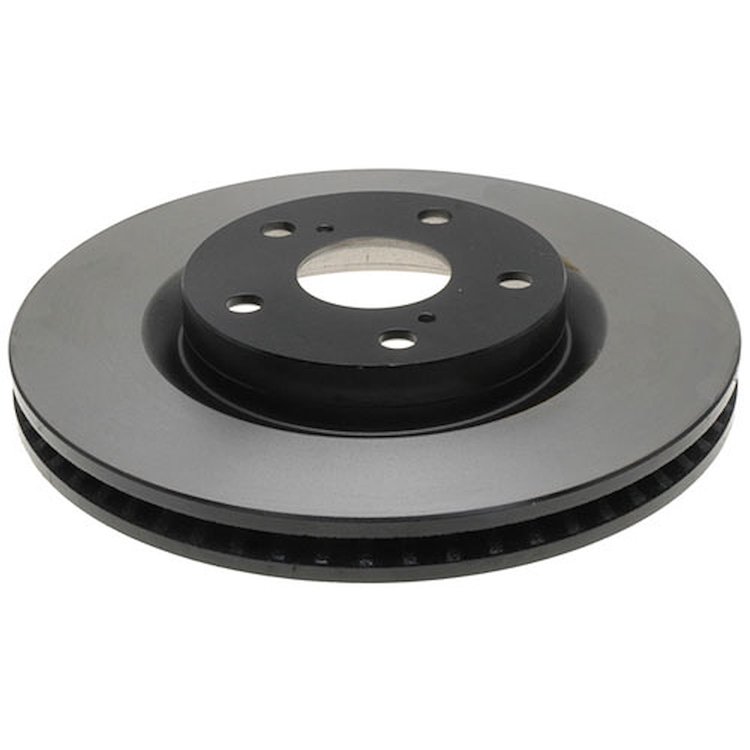

- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height2.3
Package Width12.3
Package Length12.3
Weight17.0 PG
Weight16.5
Part CategoryReplacement Parts
Overall Height1.94
Number Of Lugs5
Programming RequiredNo
Disc ConstructionVented
Discard Thickness0.984
Center Bore Diameter (Mm)62mm
Max Center Hole Diameter2.44 in (61.976 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)295.91mm
Center Bore Diameter (In)2.4in
Center Hole Diameter2.441
Pad Contact Surface Width (Mm)53.25
Center Hole Diameter (Mm)61.98
Directional Or Non-Directional Brake SurfaceNo
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Nominal Thickness (Mm)27.965
Features & Benefits - Bullet 2Black coating on hat and vanes
Disc FinishGround
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Overall Rotor Diameter11.65 in (295.9 mm)
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)114.3
Discard Thickness (Mm)24.993
Stud/Lug Hole Quantity5
Overall Height (Mm)49.28
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and f unction, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
PositionFront
Height (Mm)49.1
Bolt Circle Diameter (Mm)114.3
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Pitch Circle Diameter4.5 in (114.3 mm)
Mounting Bolt Hole Diameter14.4
ConstructionFull Cast
Solid Or Vented Type RotorVented
Thickness (Mm)27.965
Thickness1.101 in (28 mm)
Width (In)12.3
Bolt Circle Diameter4.5 in (114.3 mm)
MaterialCast Iron
Bearings IncludedNo
Outside Diameter (Mm)295.91
Pad Contact Surface Width2.1
Hat FinishTurned
Includes Abs Sensor RingNo
Max Bolt Hole Diameter (Mm)61.98
Mounting Bolt Hole Circle Diameter114.3
Height (In)1.9
Rust Resistant CoatingYes
SlottedNo
Length (In)12.3
Conventional Or Drum-In-Hat Type RotorConventional
Grade TypeRegular
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.5
Part FitmentDirect Fit
Outside Diameter11.65
Nominal Thickness27.95
Vendor Part Number18A2448
Package Qty1
Package TypeEA
