Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

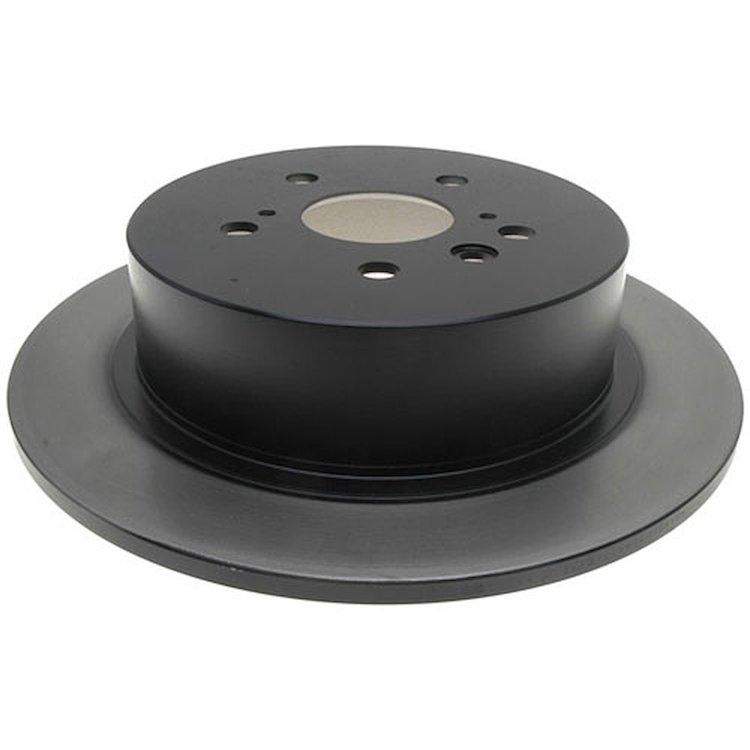

- Rear Drum In-Hat Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height3.3
Package Width12.1
Package Length12.1
Weight13.0 PG
Part CategoryReplacement Parts
Overall Height2.72 in (69.1 mm)
Number Of Lugs5
Disc ConstructionSolid
Max Center Hole Diameter2.44 in (61.976 mm)
Abs Sensor Ring IncludedNo
Discard Thickness0.34 in (8.636 mm)
Pad Contact Surface Width (Mm)49.15
Center Hole Diameter (Mm)61.98
Overall Rotor Diameter (Mm)308.86
Nominal Thickness (Mm)9.906
Center Hole Diameter2.44 in (61.976 mm)
Disc FinishGround
Bolt Hole Quantity5
Overall Rotor Diameter12.16 in (308.9 mm)
Bolt Circle Diameter (Mm)114.3
Pitch Circle Diameter (Mm)114.3
Discard Thickness (Mm)8.636
Overall Height (Mm)69.08
PositionRear
Solid Or Vented Type RotorSolid
MaterialCast Iron
Pitch Circle Diameter4.5 in (114.3 mm)
Pad Contact Surface Width1.9
Hat FinishTurned
Thickness (Mm)9.906
Thickness0.39 in (9.9 mm)
Bolt Circle Diameter4.5 in (114.3 mm)
Rust Resistant CoatingYes
Outside Diameter (Mm)309
Includes Abs Sensor RingNo
SlottedNo
Max Bolt Hole Diameter (Mm)61.98
Surface TypeSmooth
Part FitmentDirect Fit
Outside Diameter12.2 in (309.9 mm)
Nominal Thickness0.39 in (9.9 mm)
Grade TypeRegular
Vendor Part Number18A2610
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
