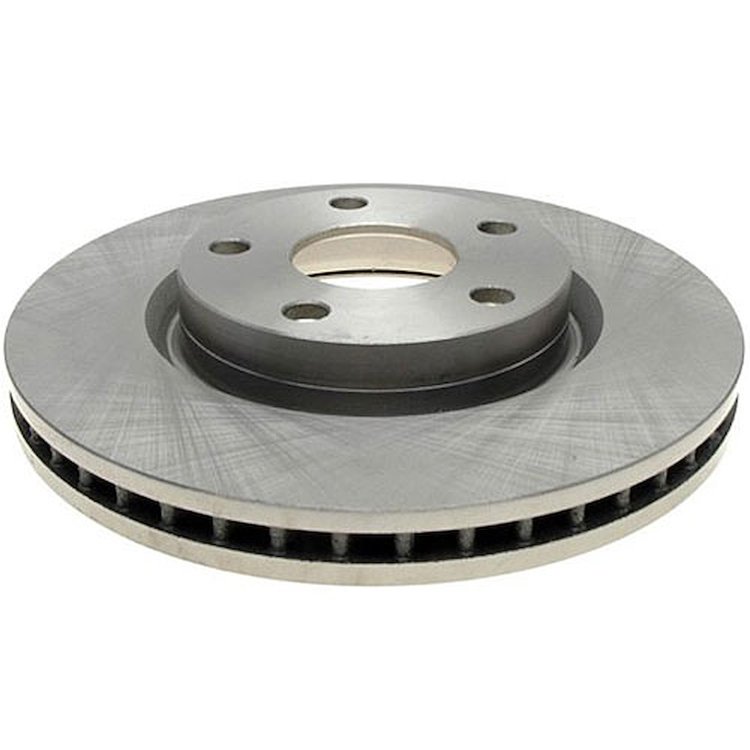

Front Brake Rotors
- Front Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height2.3
Package Width13.9
Package Length14.0
Weight18.89 PG
Part CategoryReplacement Parts
Overall Height52.05
Number Of Lugs5
Programming RequiredNo
Disc ConstructionVented
Discard Thickness28
Center Bore Diameter (Mm)67.4mm
Max Center Hole Diameter2.65 in (67.31 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)297.94mm
Center Bore Diameter (In)2.7in
Center Hole Diameter2.652
Pad Contact Surface Width (Mm)55
Center Hole Diameter (Mm)67.31
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Inside Diameter187.95
Nominal Thickness (Mm)29.997
Features & Benefits - Bullet 2Black coating on hat and vanes
Disc FinishTurned
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Overall Rotor Diameter11.73 in (297.9 mm)
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)120
Stud/Lug Hole Quantity5
Discard Thickness (Mm)28
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
Overall Height (Mm)52.07
Height (Mm)51.8
PositionFront
Bolt Circle Diameter (Mm)120
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Mounting Bolt Hole Diameter0.638
Pitch Circle Diameter4.72 in (119.9 mm)
ConstructionFull Cast
Solid Or Vented Type RotorVented
MaterialCast Iron
Thickness (Mm)29.997
Pad Contact Surface Width55
Thickness1.181 in (30 mm)
Bolt Circle Diameter4.72 in (119.888 mm)
Hat FinishTurned
Mounting Bolt Hole Circle Diameter120
Height (In)2
Outside Diameter (Mm)298
Includes Abs Sensor RingNo
Rust Resistant CoatingYes
SlottedNo
Conventional Or Drum-In-Hat Type RotorConventional
Max Bolt Hole Diameter (Mm)67.31
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.7
Part FitmentDirect Fit
Grade TypeRegular
Outside Diameter11.729
Nominal Thickness1.181
Vendor Part Number18A2658
Package Qty1
Package TypeEA
