Vehicle Info NeededACDELCOPART NUMBER: 065-18A2719

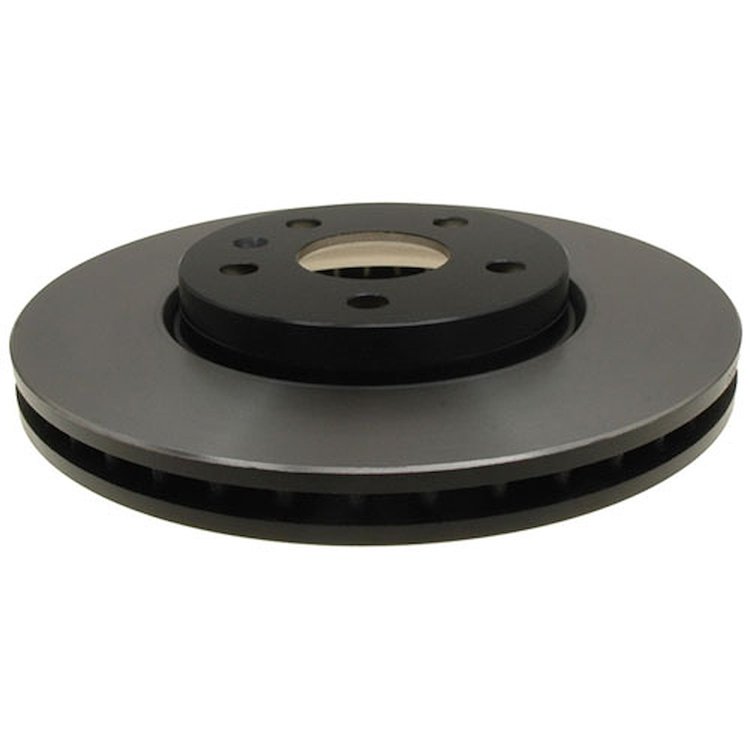

Front Disc Brake Rotor for Select 2010-2021 Buick, Chevrolet, GMC
$9660
Lowest Price Guarantee- Front Disc Brake Rotor
- 2010-2017 Buick Allure, Lacrosse, Regal
- 2010-2021 Chevrolet Camaro, Corvette, Equinox, Impala, Malibu
- 2010-2017 GMC Terrain
- Sold Individually
Rotors with High Level of Braking Performance
ACDelco Disc Brake Rotors are all made of high-quality materials with precision and specific design features that meet OE specifications.
Part TypeBrake Rotor
Product LineACDelco Disc Brake Rotors
BrandACDELCO
Package Height2.3
Package Width13.2
Package Length14.0
Weight22.35 PG
Weight22.45
Part CategoryReplacement Parts
Overall Height2.008
Number Of Lugs5
Programming RequiredNo
Disc ConstructionVented
Discard Thickness1.063
Max Center Hole Diameter2.65 in (67.31 mm)
Overall Rotor Diameter (Mm)321.06mm
Center Hole Diameter2.65
Center Hole Diameter (Mm)67.31
Directional Or Non-Directional Brake SurfaceNon-Directional
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Nominal Thickness (Mm)29.997
Inside Diameter190.5
Features & Benefits - Bullet 2Black coating on hat and vanes
Bolt Hole Quantity5
Overall Rotor Diameter12.64 in (321.1 mm)
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Pitch Circle Diameter (Mm)120
Discard Thickness (Mm)27
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Overall Height (Mm)51.05
Stud/Lug Hole Quantity5
PositionFront
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
Bolt Circle Diameter (Mm)120
Pitch Circle Diameter4.72 in (119.9 mm)
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Mounting Bolt Hole Diameter16.2
Thickness (Mm)29.997
ConstructionFull Cast
Thickness1.181 in (30 mm)
Bolt Circle Diameter4.72 in (119.888 mm)
Solid Or Vented Type RotorVented
Outside Diameter (Mm)321.06
Width (In)13.1
Includes Abs Sensor RingNo
MaterialCast Iron
Bearings IncludedNo
Hat FinishPainted
Max Bolt Hole Diameter (Mm)16.26
Mounting Bolt Hole Circle Diameter4.72
Height (In)4.2
Max Bolt Hole Diameter0.64 in (16.256 mm)
SlottedNo
Length (In)13.2
Conventional Or Drum-In-Hat Type RotorConventional
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.72
Part FitmentDirect Fit
Outside Diameter12.638
Nominal Thickness1.181
Vendor Part Number18A2719
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
