Lowest Price GuaranteePart TypeBrake Rotor
BrandACDELCO
Weight16.8
Overall Height49.3
Programming RequiredNo
Discard Thickness0.984
Center Bore Diameter (Mm)61mm
Center Bore Diameter (In)2.4in
Center Hole Diameter2.44
Directional Or Non-Directional Brake SurfaceNon-Directional
Inside Diameter189.25
Features & Benefits - Bullet 2Mill-balanced for proper rotor function; no extra weights needed
Disc FinishNon Directional
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4Rounded radius for added strength
Stud/Lug Hole Quantity5

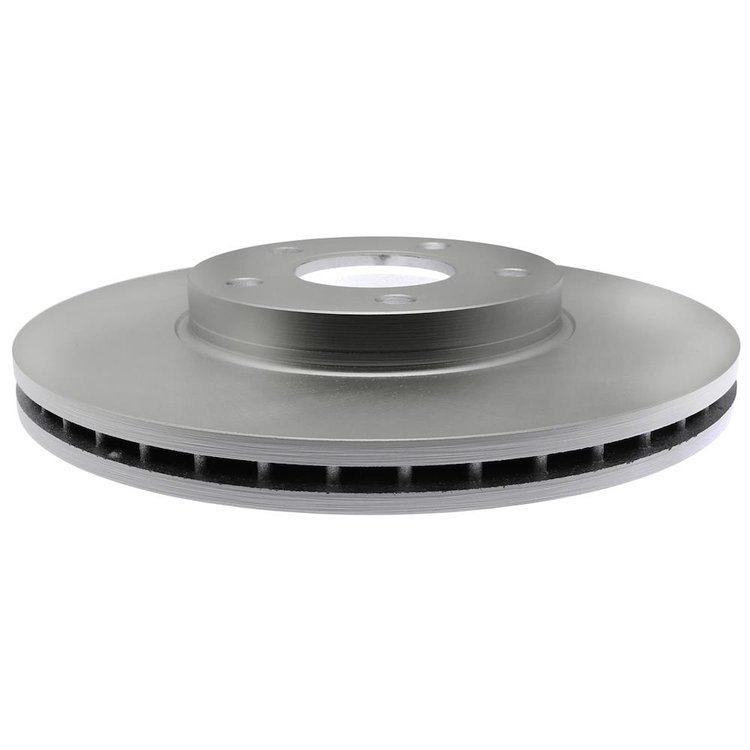

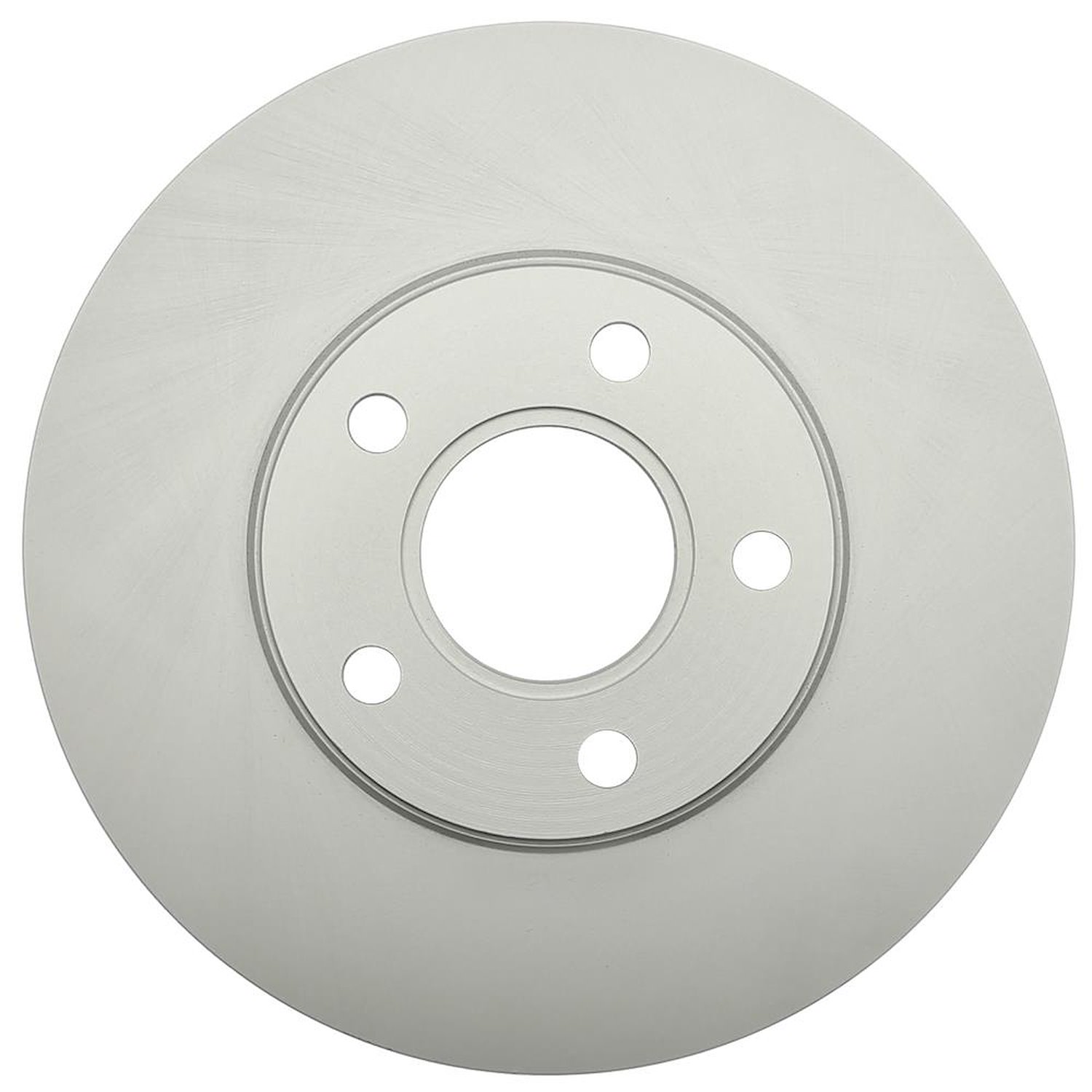

Product DescriptionACDelco Silver (Advantage) Coated Disc Brake Rotors are a quality, high value alternative for General Motors vehicles as well as most makes and models and are backed by General Motors. These rotors provide reliable vehicle braking power. Their robotic-applied, baked-on coating helps prevent brake pulsation, helps prevent the rotor from seizing to the hub, and provides superior rust prevention against harsh environmental elements such as rain, snow, and corrosive road sprays. They feature a non-directional ground finish that helps to extend brake pad life and minimizes thickness variation. They are also ready to be installed right out of the box, with no machining required. ACDelco Silver (Advantage) parts are a good choice for many vehicles on the road today. Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
Height (Mm)48.3
Bolt Circle Diameter (Mm)114.3
Features &#38; Benefits - Bullet 1Manufactured with multiple alloys for improved heat dissipation and performance
Mounting Bolt Hole Diameter14.65
ConstructionFull Cast
Solid Or Vented Type RotorVented
Width (In)12.3
MaterialCast Iron
Hat FinishPlain
Mounting Bolt Hole Circle Diameter4.5
Height (In)1.9
Rust Resistant CoatingYes
SlottedNo
Length (In)13.1
Conventional Or Drum-In-Hat Type RotorConventional
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.5
Outside Diameter11.655
Nominal Thickness28
Vendor Part Number18A2736AC
Package Qty1
Package TypeEA
