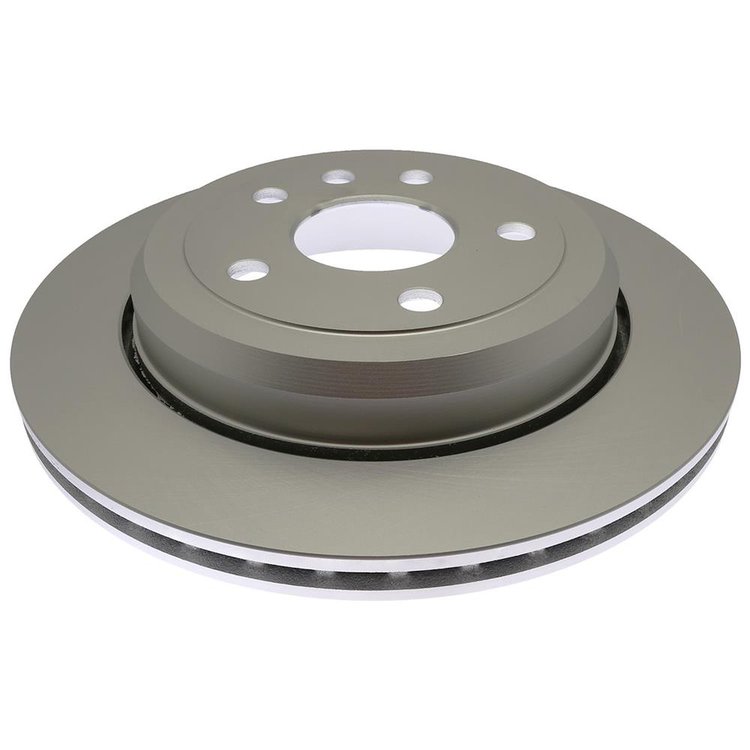

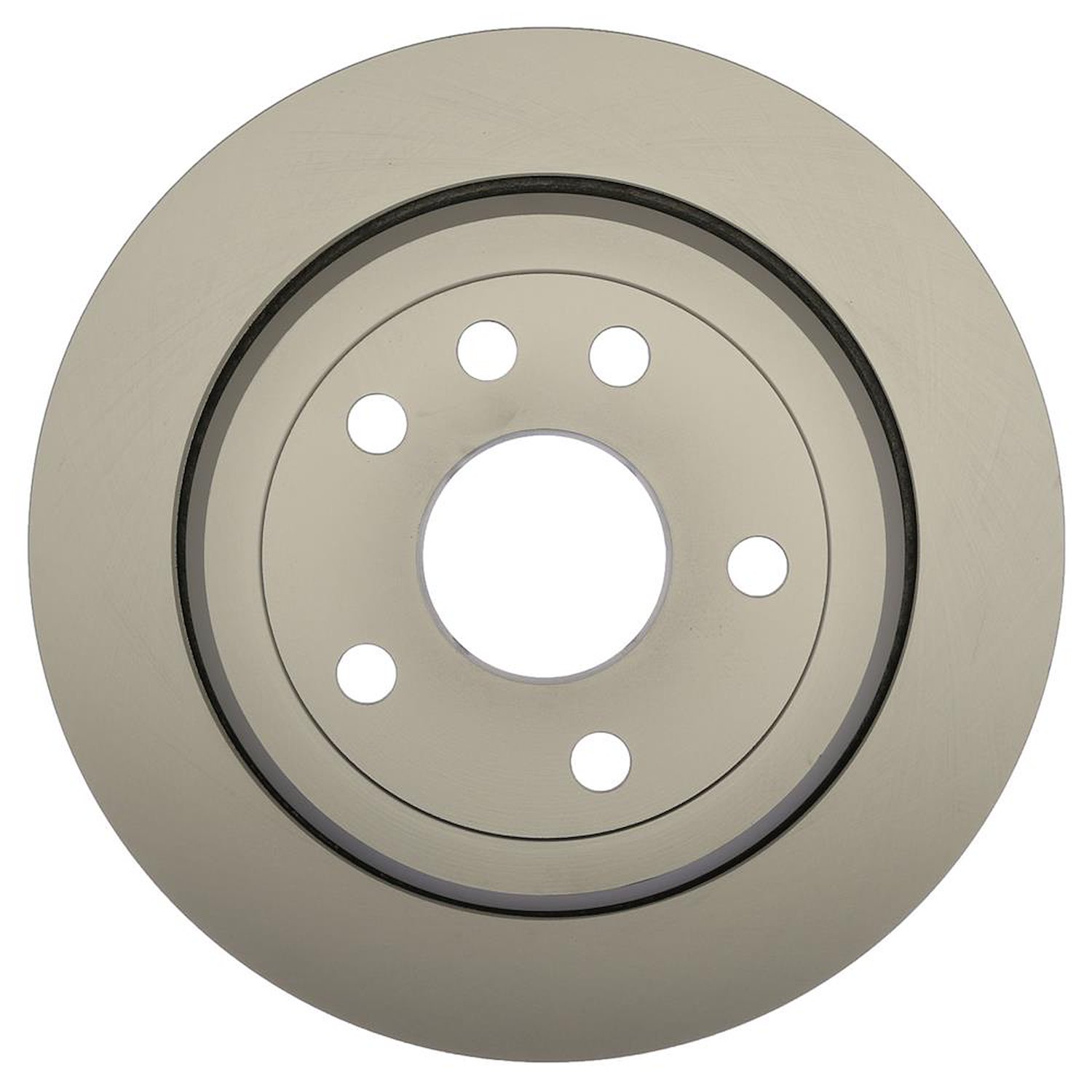

Lowest Price GuaranteePart TypeBrake Rotor
BrandACDELCO
Weight18.8
Overall Height63.6
Programming RequiredNo
Discard Thickness0.807
Center Bore Diameter (Mm)71.1mm
Center Bore Diameter (In)2.8in
Center Hole Diameter2.84
Directional Or Non-Directional Brake SurfaceNo
Inside Diameter9.232
Features & Benefits - Bullet 2Mill-balanced for proper rotor function; no extra weights needed
Disc FinishNon Directional
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4Rounded radius for added strength
Stud/Lug Hole Quantity5
Product DescriptionACDelco Silver (Advantage) Coated Disc Brake Rotors are a quality, high value alternative for General Motors vehicles as well as most makes and models and are backed by General Motors. These rotors provide reliable vehicle braking power. Their robotic-applied, baked-on coating helps prevent brake pulsation, helps prevent the rotor from seizing to the hub, and provides superior rust prevention against harsh environmental elements such as rain, snow, and corrosive road sprays. They feature a non-directional ground finish that helps to extend brake pad life and minimizes thickness variation. They are also ready to be installed right out of the box, with no machining required. ACDelco Silver (Advantage) parts are a good choice for many vehicles on the road today. Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
Height (Mm)63.5
Bolt Circle Diameter (Mm)127
Features &#38; Benefits - Bullet 1Manufactured with multiple alloys for improved heat dissipation and performance
Mounting Bolt Hole Diameter0.667
ConstructionFull Cast
Solid Or Vented Type RotorVented
Width (In)3.1
MaterialCast Iron
Bearings IncludedNo
Hat FinishPlain
Mounting Bolt Hole Circle Diameter127
Height (In)2.5
Rust Resistant CoatingYes
SlottedNo
Length (In)13.9
Conventional Or Drum-In-Hat Type RotorDrum-In-Hat
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)5
Outside Diameter330
Nominal Thickness22
Vendor Part Number18A2794AC
Package Qty1
Package TypeEA
