Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

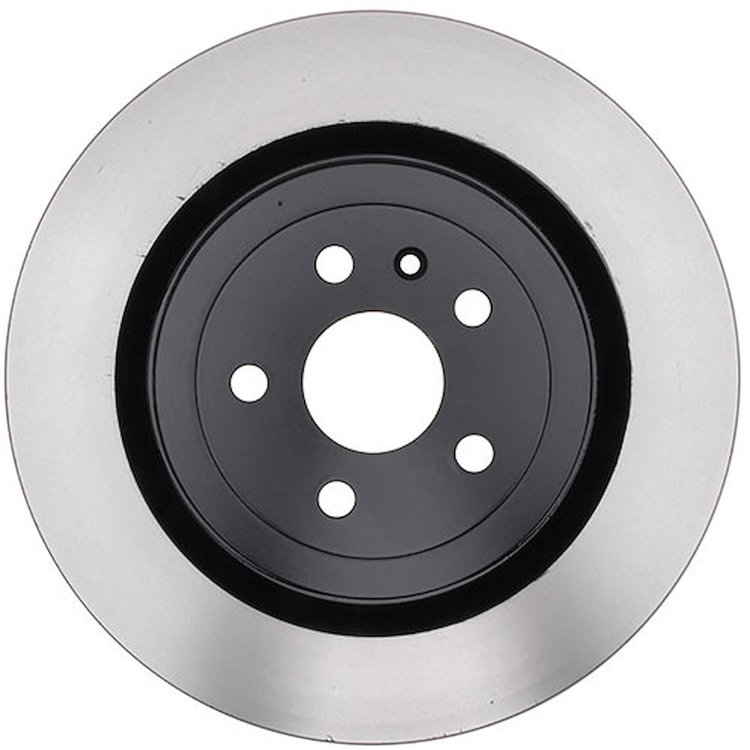

- Rear Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height3.8
Package Width14.6
Package Length14.6
Weight25.0 PG
Weight25
Part CategoryReplacement Parts
Overall Height47.5
Number Of Lugs5
Programming RequiredNo
Disc ConstructionVented
Discard Thickness26
Center Bore Diameter (Mm)67.4mm
Max Center Hole Diameter2.65 in (67.31 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)364.99mm
Center Bore Diameter (In)2.7in
Center Hole Diameter67.4
Pad Contact Surface Width (Mm)56
Center Hole Diameter (Mm)67.31
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Inside Diameter252.9
Nominal Thickness (Mm)27.99
Features & Benefits - Bullet 2Black coating on hat and vanes
Disc FinishTurned
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Overall Rotor Diameter14.37 in (365 mm)
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)119.89
Discard Thickness (Mm)26.009
Stud/Lug Hole Quantity5
Overall Height (Mm)47.49
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
PositionRear
Height (Mm)47.4
Bolt Circle Diameter (Mm)120
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Pitch Circle Diameter4.72 in (119.9 mm)
Mounting Bolt Hole Diameter16.45
ConstructionFull Cast
Solid Or Vented Type RotorVented
Thickness (Mm)27.99
Thickness1.102 in (28 mm)
Width (In)15
Bolt Circle Diameter4.72 in (119.888 mm)
MaterialCast Iron
Pad Contact Surface Width2.2
Hat FinishTurned
Outside Diameter (Mm)365
Includes Abs Sensor RingNo
Mounting Bolt Hole Circle Diameter4.724
Height (In)1.9
Max Bolt Hole Diameter (Mm)16.51
Rust Resistant CoatingYes
SlottedNo
Length (In)15.1
Conventional Or Drum-In-Hat Type RotorDrum-In-Hat
Abs Tone Ring IncludedNo
Max Bolt Hole Diameter0.65 in (16.51 mm)
Surface TypeSmooth
Bolt Circle Diameter (In)4.7
Part FitmentDirect Fit
Outside Diameter364.95
Nominal Thickness1.107
Grade TypePremium
Vendor Part Number18A2936
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
