Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

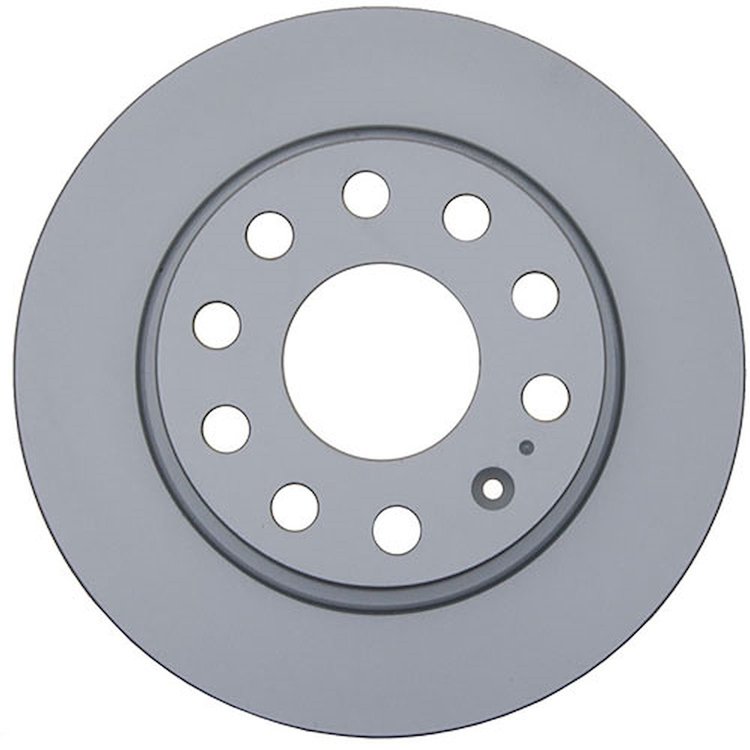

- Rear Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height2.6
Package Width10.6
Package Length10.7
Weight8.0 PG
Center Bore Diameter (Mm)65mm
Abs Sensor Ring IncludedNo
Center Bore Diameter (In)2.6in
Center Hole Diameter2.56
Discard Thickness (Mm)8.128
Good Maintenance Practices - Section 1 - Bullet 1Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
Directional Or Non-Directional Brake SurfaceNon-Directional
PositionRear
Good Maintenance Practices - Section 1 - Bullet 4Check the thickness of your brake pads.
Pad Contact Surface Width (Mm)42.45
Good Maintenance Practices - Section 1 - Bullet 2Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Good Maintenance Practices - Section 1 - Bullet 3Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Disc FinishGround
Stud/Lug Hole Quantity5
Nominal Thickness (Mm)9.906
Product DescriptionACDelco Gold (Professional) Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. They feature a thickness variation that is less than 0.0004 to minimize pedal pulsation, noise, and help to extend brake pad life. These rotors meet the SAE standard for structural integrity with OE matched G3000 qualified material delivering guaranteed performance. Also, no machining is required. ACDelco Gold (Professional) Disc Brake Rotors are ready to be installed right out of the box. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
Bolt Circle Diameter4.4
Bolt Circle Diameter (Mm)112
ConstructionFull Cast
Outside Diameter (Mm)252.9
Pad Contact Surface Width1.7
Hat FinishTurned
Mounting Bolt Hole Circle Diameter4.409
Lug Quantity5
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.4
Outside Diameter252.9
Grade TypeRegular
Part CategoryReplacement Parts
Overall Height51.3
Good Maintenance Practices - Section 2 - Bullet 3Inspection of wheel bearings and grease seals.
Good Maintenance Practices - Section 2 - Bullet 4Parking brake adjustments (as needed).
Programming RequiredNo
Discard Thickness0.315
Good Maintenance Practices - Section 2 - Bullet 1Inspection of the brake hoses for brittleness or cracking.
Good Maintenance Practices - Section 2 - Bullet 2Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
Good Maintenance Practices - Section 2 - HeaderThe following should be conducted by a qualified technician:
Faq - Answer 1Yes, ACDelco also offers GM OE brake rotor and Advantage brake rotors.
Features &#38; Benefits - Bullet 6Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Inside Diameter6.614
Features &#38; Benefits - Bullet 2Independently tested with Noise/Vibration/Harshness (NVH) and durability/wear testing; resulting in high quality and reliable products
Bolt Hole Quantity5
Features &#38; Benefits - Bullet 3Follows original manufacturers' designs for dispersing heat, helping to prolong pad and rotor life while reducing noise and vibration
Features &#38; Benefits - Bullet 4Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Features &#38; Benefits - Bullet 5Premium aftermarket replacement part
Height (Mm)51.3
Features &#38; Benefits - Bullet 1Inspected for balance; resulting in smooth brake operation and noise reduction
Mounting Bolt Hole Diameter0.477
Solid Or Vented Type RotorSolid
Good Maintenance Practices - Section 1 - HeaderThe following inspections and maintenance procedures can help prevent potential brake problems:
MaterialCast Iron
Height (In)2
Rust Resistant CoatingNo
SlottedNo
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Vehicle pulls to the left or right when brakes are applied.
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5Visible ridges or deep grooves on the rotor surface.
Conventional Or Drum-In-Hat Type RotorConventional
Part FitmentDirect Fit
Nominal Thickness10
Faq - Question 1Does ACDelco offer other grades of brake rotors?
Vendor Part Number18A2966
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
