Vehicle Info Needed

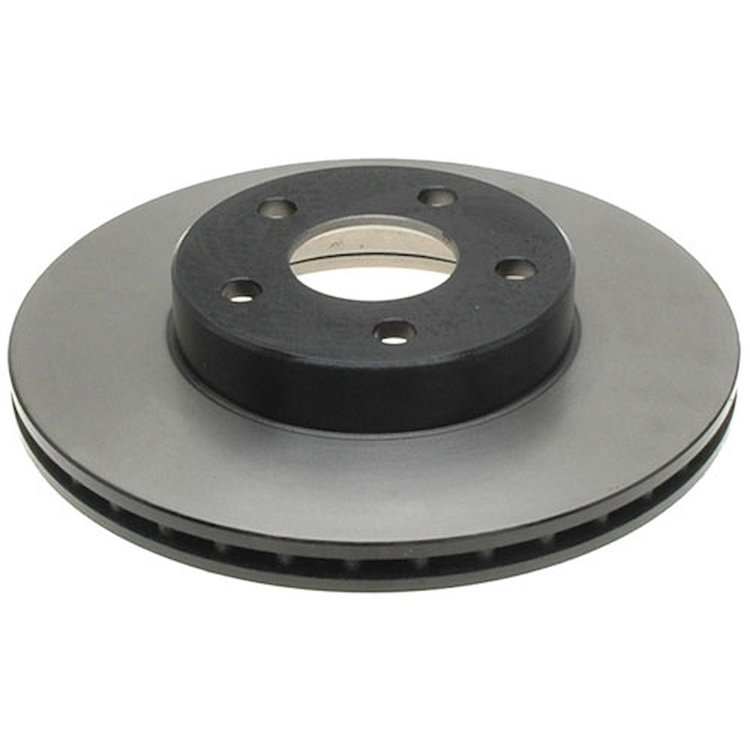

Lowest Price Guarantee- Front Disc Brake Rotor Assembly
Part TypeBrake Rotor
BrandACDELCO
Package Height2.3
Package Width10.7
Package Length11.3
Weight12.05 PG
Weight12
Part CategoryReplacement Parts
Overall Height1.885
Number Of Lugs5
Programming RequiredNo
Disc ConstructionVented
Discard Thickness0.736
Center Bore Diameter (Mm)58.4mm
Max Center Hole Diameter2.3 in (58.42 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)259.08mm
Center Bore Diameter (In)2.3in
Center Hole Diameter58.4
Pad Contact Surface Width (Mm)56
Center Hole Diameter (Mm)58.42
Directional Or Non-Directional Brake SurfaceNon-Directional
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Nominal Thickness (Mm)20.32
Features & Benefits - Bullet 2Black coating on hat and vanes
Disc FinishGround
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Overall Rotor Diameter10.2 in (259.1 mm)
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)100
Discard Thickness (Mm)18.694
Stud/Lug Hole Quantity5
Overall Height (Mm)48.01
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
PositionFront
Height (Mm)48
Bolt Circle Diameter (Mm)100
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Pitch Circle Diameter3.93 in (99.8 mm)
Mounting Bolt Hole Diameter0.552
ConstructionFull Cast
Solid Or Vented Type RotorVented
Thickness (Mm)20.32
Thickness0.8 in (20.3 mm)
Width (In)11.5
Bolt Circle Diameter3.9
MaterialCast Iron
Pad Contact Surface Width2.2
Hat FinishTurned
Outside Diameter (Mm)259.08
Includes Abs Sensor RingNo
Mounting Bolt Hole Circle Diameter99.8
Height (In)1.9
Max Bolt Hole Diameter (Mm)58.42
Rust Resistant CoatingYes
SlottedNo
Length (In)10.8
Conventional Or Drum-In-Hat Type RotorConventional
Abs Tone Ring IncludedNo
Grade TypeRegular
Surface TypeSmooth
Bolt Circle Diameter (In)3.9
Part FitmentDirect Fit
Outside Diameter259.1
Nominal Thickness0.8
Vendor Part Number18A407
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
