Vehicle Info NeededACDELCOPART NUMBER: 065-18A717

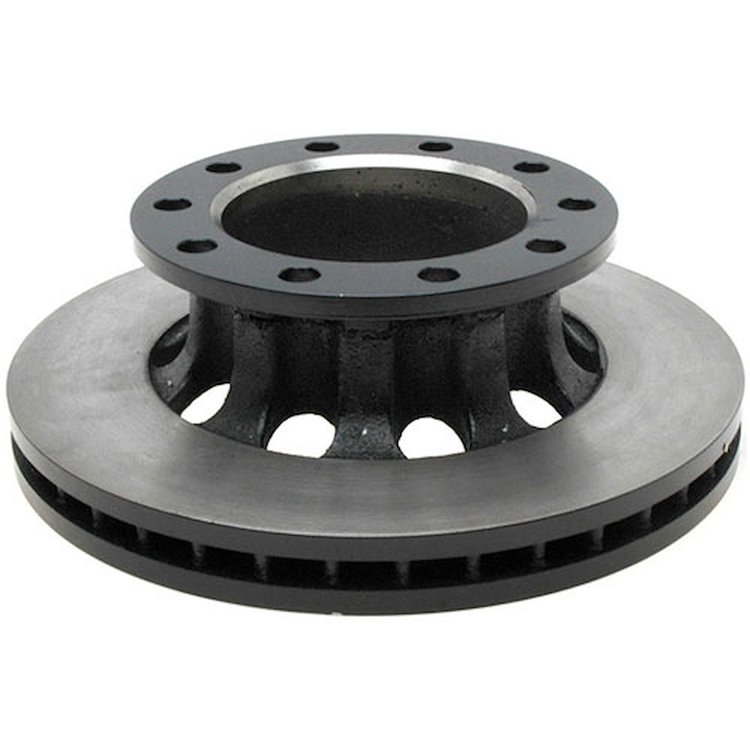

Rear Disc Brake Rotor Assembly Fits Select 1997-2005 GM Models
$12976$180.99You Save$51.23
2 left in stock
Ships Tomorrow
Lowest Price Guarantee- Rear Disc Brake Rotor Assembly
- Fits Select 1997-2005 GM Models
- See Fitment Tab for Application Information
- Sold Individually
Part TypeBrake Rotor
BrandACDELCO
Package Height4.85
Package Width14.35
Package Length14.75
Weight35.72 PG
Part CategoryReplacement Parts
Overall Height4.365
Number Of Lugs10
Programming RequiredNo
Disc ConstructionVented
Discard Thickness34.7
Center Bore Diameter (Mm)139.7mm
Max Center Hole Diameter4.14 in (105.156 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)344.93mm
Center Bore Diameter (In)5.5in
Center Hole Diameter5.5
Pad Contact Surface Width (Mm)64.9
Center Hole Diameter (Mm)105.16
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Features & Benefits - Bullet 2Black coating on hat and vanes
Nominal Thickness (Mm)36.195
Disc FinishGround
Bolt Hole Quantity10
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Overall Rotor Diameter13.58 in (344.9 mm)
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)184.15
Stud/Lug Hole Quantity10
Discard Thickness (Mm)34.696
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have f ormerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity10
Overall Height (Mm)110.74
Height (Mm)110.9
PositionRear
Bolt Circle Diameter (Mm)184.2
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Mounting Bolt Hole Diameter184.15
Pitch Circle Diameter7.25 in (184.2 mm)
ConstructionFull Cast
Solid Or Vented Type RotorVented
MaterialCast Iron
Thickness (Mm)36.195
Pad Contact Surface Width64.9
Thickness1.425 in (36.2 mm)
Bolt Circle Diameter7.3
Hat FinishTurned
Mounting Bolt Hole Circle Diameter7.25
Height (In)4.4
Outside Diameter (Mm)344.9
Includes Abs Sensor RingNo
Rust Resistant CoatingNo
SlottedNo
Conventional Or Drum-In-Hat Type RotorConventional
Max Bolt Hole Diameter (Mm)105.16
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)7.3
Part FitmentDirect Fit
Grade TypeRegular
Outside Diameter13.58
Nominal Thickness1.425
Vendor Part Number18A717
Package Qty1
Package TypeEA
