Vehicle Info Needed

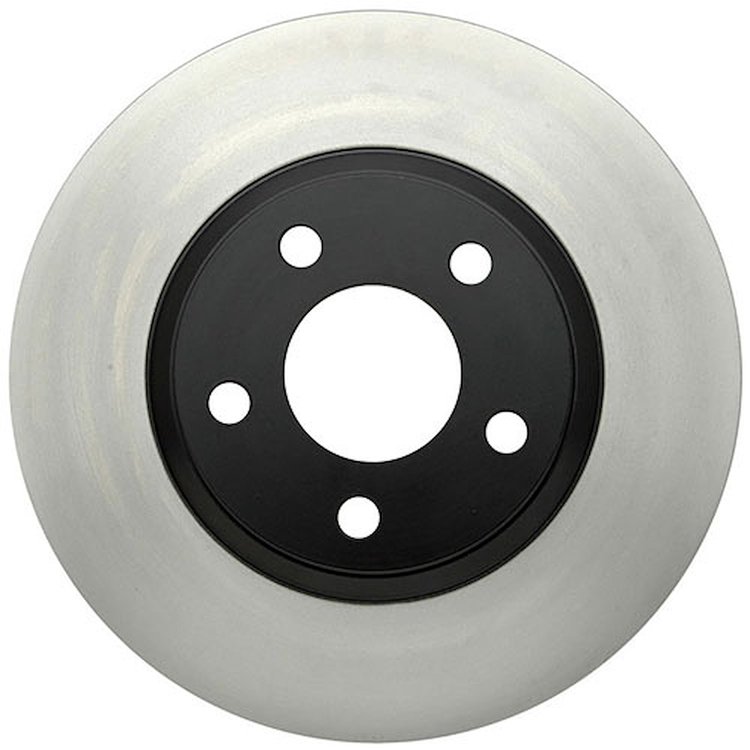

Lowest Price Guarantee- Front Disc Brake Rotor
Part TypeBrake Rotor
BrandACDELCO
Package Height2.2
Package Width12.6
Package Length13.4
Weight19.75 PG
Weight20
Part CategoryReplacement Parts
Overall Height51.8
Number Of Lugs5
Programming RequiredNo
Disc ConstructionVented
Discard Thickness1.209
Center Bore Diameter (Mm)70.7mm
Max Center Hole Diameter2.78 in (70.612 mm)
Abs Sensor Ring IncludedNo
Overall Rotor Diameter (Mm)302.77mm
Center Bore Diameter (In)2.8in
Center Hole Diameter70.6
Pad Contact Surface Width (Mm)56.45
Center Hole Diameter (Mm)70.61
Directional Or Non-Directional Brake SurfaceNon-Directional
Features & Benefits - Bullet 6Premium aftermarket replacement part
Features & Benefits - Bullet 7Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Nominal Thickness (Mm)32.258
Features & Benefits - Bullet 2Black coating on hat and vanes
Disc FinishGround
Front Brake TypeVarious - Application Specific
Bolt Hole Quantity5
Features & Benefits - Bullet 3Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4Tighter tolerances similar to GM OE specifications
Overall Rotor Diameter11.92 in (302.8 mm)
Features & Benefits - Bullet 5Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
Pitch Circle Diameter (Mm)118
Stud/Lug Hole Quantity5
Discard Thickness (Mm)30.708
Product DescriptionACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mounting Bolt Hole Quantity5
Overall Height (Mm)51.82
Height (Mm)51.8
PositionFront
Bolt Circle Diameter (Mm)118
Features &#38; Benefits - Bullet 1Cross drilled for quick brake response and heat dissipation
Mounting Bolt Hole Diameter15.8
Pitch Circle Diameter4.64 in (117.9 mm)
ConstructionFull Cast
Solid Or Vented Type RotorVented
Thickness (Mm)32.258
Width (In)12
MaterialCast Iron
Thickness1.27 in (32.3 mm)
Pad Contact Surface Width56.45
Rear Brake TypeVarious - Application Specific
Bolt Circle Diameter4.64 in (117.856 mm)
Hat FinishTurned
Mounting Bolt Hole Circle Diameter4.646
Outside Diameter (Mm)302.6
Height (In)2
Includes Abs Sensor RingNo
Rust Resistant CoatingYes
Max Bolt Hole Diameter (Mm)70.61
SlottedNo
Length (In)12
Conventional Or Drum-In-Hat Type RotorConventional
Abs Tone Ring IncludedNo
Surface TypeSmooth
Bolt Circle Diameter (In)4.6
Grade TypeRegular
Part FitmentDirect Fit
Outside Diameter302.75
Nominal Thickness1.27
Vendor Part Number18A813
Package Qty1
Package TypeEA
