Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

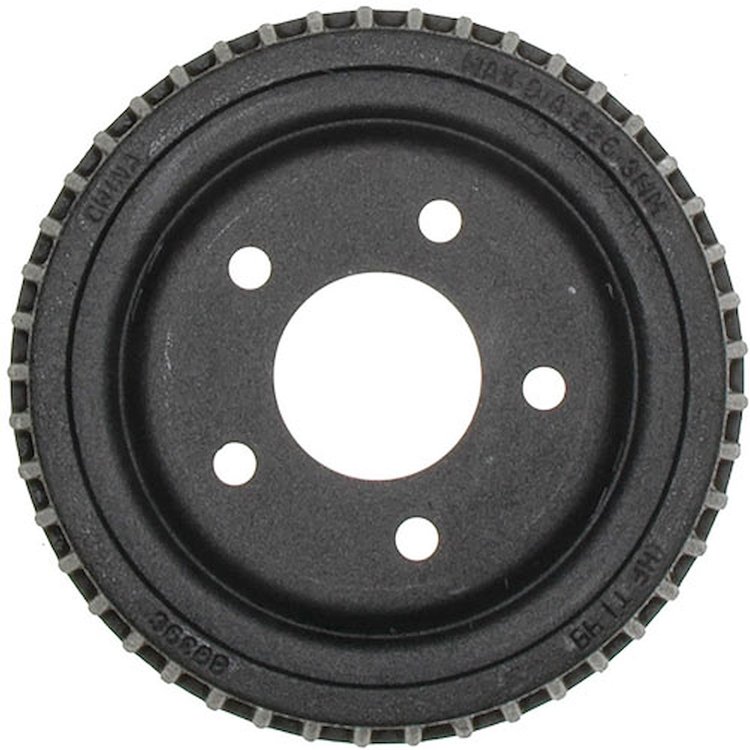

- Rear Brake Drum Assembly
Part TypeBrake Drum
BrandACDELCO
Package Height3.3
Package Width11.1
Package Length11.1
Weight12.4 PG
Weight12.4
Part CategoryReplacement Parts
Abs Sensor Ring IncludedNo
Good Maintenance Practices - Section 2 - Bullet 3Inspection of wheel bearings and grease seals.
Discard Thickness8.91 in (226.314 mm)
Good Maintenance Practices - Section 2 - Bullet 4Parking brake adjustments (as needed).
Maximum Brake Diameter (Discard) (Mm)226.31
Programming RequiredNo
Stud/Lug Hole Diameter0.554
Good Maintenance Practices - Section 2 - Bullet 1Inspection of the brake hoses for brittleness or cracking.
Mount Hole Diameter0.562 in (14.275 mm)
Discard Thickness (In)8.91
Nominal Drum Diameter (Mm)226.1
Good Maintenance Practices - Section 2 - Bullet 2Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
New Or RemanufacturedNew
Center Bore Diameter (Mm)70.7mm
Front Brake TypeVarious - Application Specific
Nominal Drum Diameter0.351
Good Maintenance Practices - Section 2 - HeaderThe following should be conducted by a qualified technician:
Number Of DoorsVarious Application Specific
Bolt Circle Diameter (Mm)115
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Squealing or scraping noises.
Center Bore Diameter (In)2.78in
Body TypeVarious - Application Specific
Depth54.35
Good Maintenance Practices - Section 1 - Bullet 1Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
PositionRear
Faq - Answer 3No, but it is a good idea to inspect them at every tire rotation.
Faq - Answer 2Yes, ACDelco also offers GM OE and Advantage brake drums.
Faq - Answer 1No, but it is a good idea to inspect them for wear-out, cracking, leaking etc.
Good Maintenance Practices - Section 1 - Bullet 4Check the thickness of your brake pads.
Rear Brake TypeVarious - Application Specific
Good Maintenance Practices - Section 1 - Bullet 2Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Good Maintenance Practices - Section 1 - Bullet 3Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Features & Benefits - Bullet 2Independently tested with Noise/Vibration/Harshness (NVH) and durability/wear testing; resulting in high quality and reliable products
New Or RemanufacturedNew
Outside Diameter (Mm)276.9
Bolt Hole Quantity5
Features & Benefits - Bullet 3Follows original manufacturers' designs for dispersing heat, helping to prolong pad and rotor life while reducing noise and vibration
Grade TypeRegular
Maximum Brake Diameter (Discard)226.31
Stud/Lug Hole Quantity5
Product DescriptionACDelco Professional Brake Drums are constructed with G3000 SAE qualified material for structural integrity and maximum service life. They are tested to ISO/TS 16949 quality system standards and validated for balance to provide better braking performance. Chamfer angle, vane configuration, and plate thickness all follow the OE design, making them a premium aftermarket replacement for your GM and non-GM vehicle. Also, no machining is required. ACDelco Professional Brake Drums are ready to be installed right out of the box. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mount Hole Diameter (In)0.562in
Features &#38; Benefits - Bullet 1Inspected for balance; resulting in smooth brake operation and noise reduction
Discard Thickness (Mm)226.3
Good Maintenance Practices - Section 1 - HeaderThe following inspections and maintenance procedures can help prevent potential brake problems:
Width (In)11.12
MaterialCast Iron
Brake Surface FinishTurned
Outer Cooling FinsYes
Mount Hole Diameter (Mm)14.275mm
Height (In)4.12
Bolt Circle Diameter115
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Brake pedal pulsation (not to be confused with normal ABS operation).
Length (In)8.91
Abs Tone Ring IncludedNo
Part FitmentDirect Fit
Outside Diameter10.9
Faq - Question 3Do I have to replace my brake drums after a certain amount of time?
Faq - Question 2Does ACDelco offer other grades of brake drums?
Faq - Question 1Do I have to replace all my brake parts when replacing my brake drums?
Vendor Part Number18B136
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
