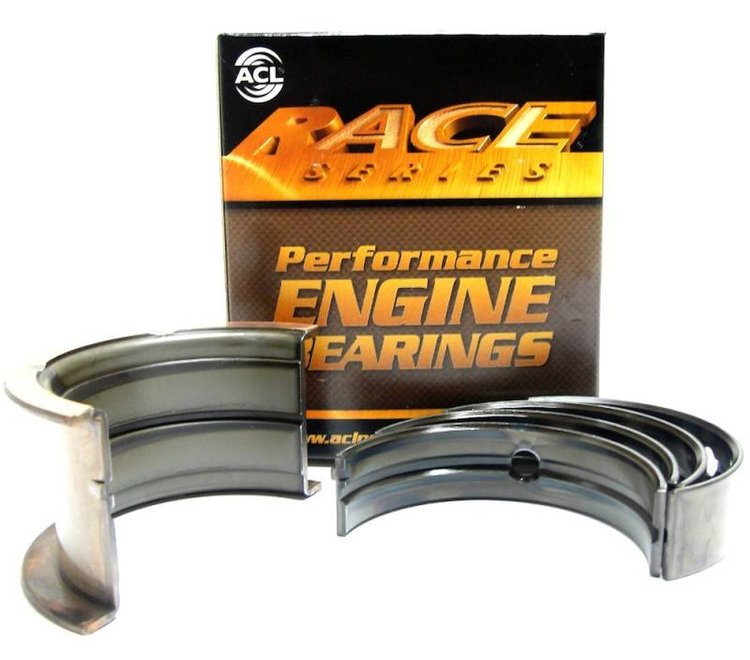

5M1644HX-STD Race Main Bearing Set, Standard w/Extra .025 mm/.001 in. Oil Clearance, Audi 3A 1984cc Inline4 SOHC 2v
InfoVehicle Info Needed
ACL BEARINGSPART NUMBER: 654-5M1644HX-STD

5M1644HX-STD Race Main Bearing Set, Standard w/Extra .025 mm/.001 in. Oil Clearance, Audi 3A 1984cc Inline4 SOHC 2v

$7881
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00
Ultra-Torque Assembly Lube w/Brush Top Container 20 ounces

ARP

Ultra-Torque Assembly Lube w/Brush Top Container 20 ounces

Part Number : 070-100-9911
$3799
Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90

Audi
Race Main Bearing Set
  • Standard w/Extra .025 mm/.001 in. Oil Clearance
  • Audi 3A 1984cc Inline4 SOHC 2v
  • Set of 5

    ACL Bearings 5M1644HX-STD Features:

    Trusted by champions worldwide, ACL RACE Series Bearings are the choice for record-setting engines from sport compact to small block race machines. Engineered w/a unique blend of design, metallurgy, and precision manufacturing, these Bearings deliver unmatched durability and performance under extreme conditions.

    • This Main Bearing Set include 6 Bearings w/Oil grooves and 4 without. The #4 journal will receive the Oil groove on both sides of the journal, the rest have a grooved Bearing on the block side only. See shell diagrams showing #4
    • Width: 0.728 in.
    • Outside Diameter: 2.3236 in.
    • Outside Diameter: 2.3228 in.
    • Shaft Diameter: 2.1251 in.
    • Shaft Diameter: 2.1243 in.
    • Grade Type: Performance
    • Maximum Wall Thickness: 0.098 in.
    • Unleash Unmatched RPM Performance with ACL Race-Series Main Bearings

      ACL Race-Series Main Bearings bring race-tested durability, precision engineering, and state-of-the-art metallurgy into your high-performance build. Their trimetal design features a high-strength overlay plate with reduced thickness for improved fatigue resistance, backed by hardened steel for enhanced support and retention under extreme conditions. These bearings deliver when the going gets tough—on the street, the strip, or the racetrack. Available for various domestic and international applications.

      ACL also offers versions with extra oil clearance (HX) or coated (HC).

    Part TypeMain Bearing
    Product LineACL Bearing Race-Series Main Bearings
    BrandACL BEARINGS
    Package Height1.02
    Package Width2.76
    Package Length6.3
    Weight0.66 PG
    Part CategoryPerformance Parts
    Maximum Wall Thickness0.098 in.
    Shaft Diameter2.1243 in.
    Part FitmentDirect Fit
    Outside Diameter2.3236 in.
    Product Width0.728 in.
    Grade TypePerformance
    Vendor Part Number5M1644HX-STD
    Package Qty1
    Package TypeEA
