Vehicle Info NeededACL BEARINGSPART NUMBER: 654-5M1743HX-STD

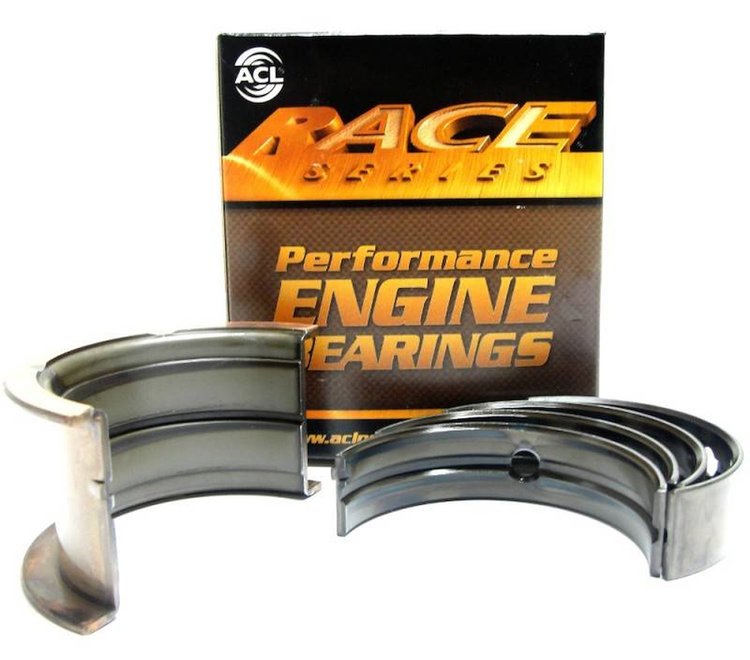

5M1743HX-STD Race Main Bearing Set, Ford 140ci (2.3L) Lima Inline4 SOHC 2v
$15499
Ships on 09/14/2026
Lowest Price GuaranteeFord
Race Main Bearing SetFord 140ci (2.3L) Lima Inline4 SOHC 2v Set of 5
ACL Bearings 5M1743HX-STD Features:
Trusted by champions worldwide, ACL RACE Series Bearings are the choice for record-setting engines from sport compact to small block race machines. Engineered w/a unique blend of design, metallurgy, and precision manufacturing, these Bearings deliver unmatched durability and performance under extreme conditions.
- Width: 0.95 in.
- Outside Diameter: 2.3979 in.
- Outside Diameter: 2.3971 in.
- Shaft Diameter: 2.2059 in.
- Shaft Diameter: 2.2051 in.
- Grade Type: Performance
- Maximum Wall Thickness: 0.0949 in.
Part TypeMain Bearing
BrandACL BEARINGS
Package Height1.38
Package Width0.95 in.
Package Length6.3
Weight1.01 PG
Part CategoryPerformance Parts
Maximum Wall Thickness0.0949 in.
Shaft Diameter2.2059 in.
Part FitmentDirect Fit
Outside Diameter2.3979 in.
Grade TypePerformance
Vendor Part Number5M1743HX-STD
Package Qty1
Package TypeEA
No Questions
No Reviews
