5M7298HX-STD Race Main Bearing Set -70-Deg Oil Groove, Extra .025 mm / 0.001 in. Oil Clearance, GM LS Gen III/IV
InfoVehicle Info Needed
ACL BEARINGSPART NUMBER: 654-5M7298HX-STD

5M7298HX-STD Race Main Bearing Set -70-Deg Oil Groove, Extra .025 mm / 0.001 in. Oil Clearance, GM LS Gen III/IV

$15424
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00
Ultra-Torque Assembly Lube w/Brush Top Container 20 ounces

ARP

Ultra-Torque Assembly Lube w/Brush Top Container 20 ounces

Part Number : 070-100-9911
$3799
Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90

GM

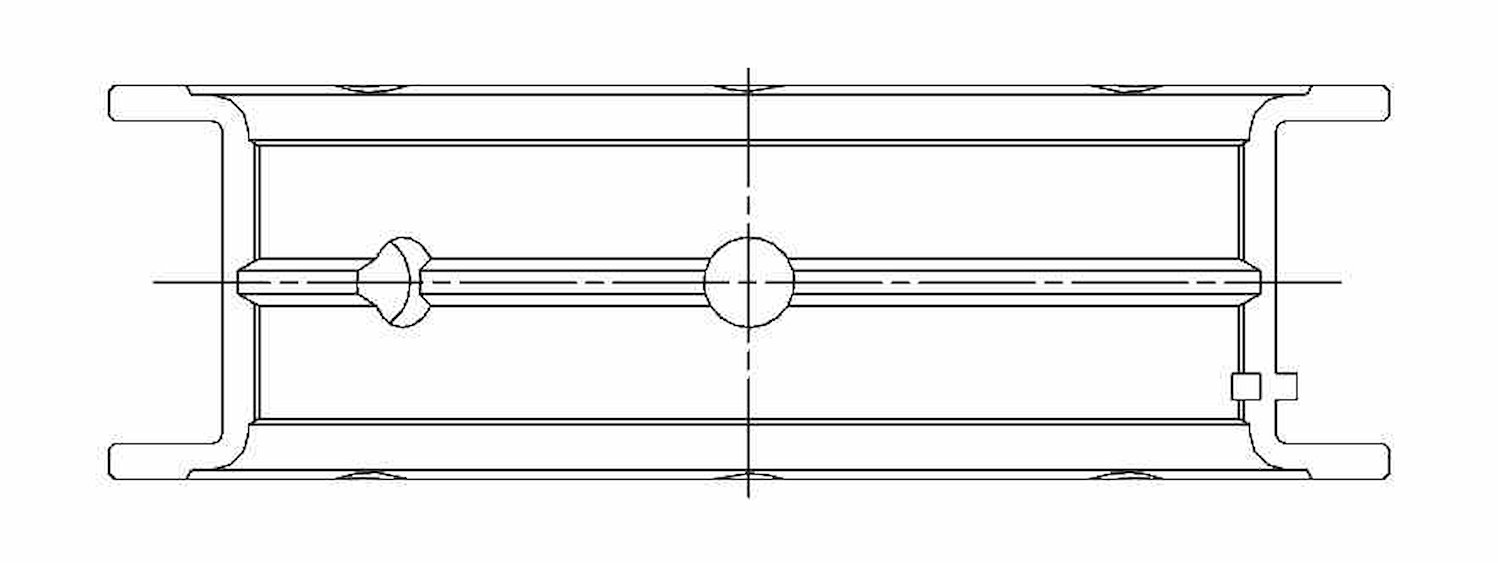

Race Main Bearing Set -70-Deg Oil Groove
  • Extra .025 mm / 0.001 in. Oil Clearance
  • GM LS Gen III/IV


  • ACL Bearings 5M7298HX-STD Features:

    Trusted by champions worldwide, ACL RACE Series Bearings are the choice for record-setting engines from sport compact to small block race machines. Engineered w/a unique blend of design, metallurgy, and precision manufacturing, these Bearings deliver unmatched durability and performance under extreme conditions.

    • Width: 1.028 in.
    • Outside Diameter: 2.7515 in.
    • Outside Diameter: 2.7509 in.
    • Shaft Diameter: 2.5593 in.
    • Shaft Diameter: 2.5588 in.
    • Grade Type: Performance
    • Maximum Wall Thickness: 0.0952 in.
  • Part TypeMain Bearing
    BrandACL BEARINGS
    Package Height2.5
    Package Width3.5
    Package Length4.0
    Weight1.03 PG
    Part CategoryPerformance Parts
    Maximum Wall Thickness0.0952 in.
    Shaft Diameter2.5593 in.
    Part FitmentDirect Fit
    Outside Diameter2.7515 in.
    Product Width1.028 in.
    Grade TypePerformance
    Vendor Part Number5M7298HX-STD
    Package Qty1
    Package TypeEA
