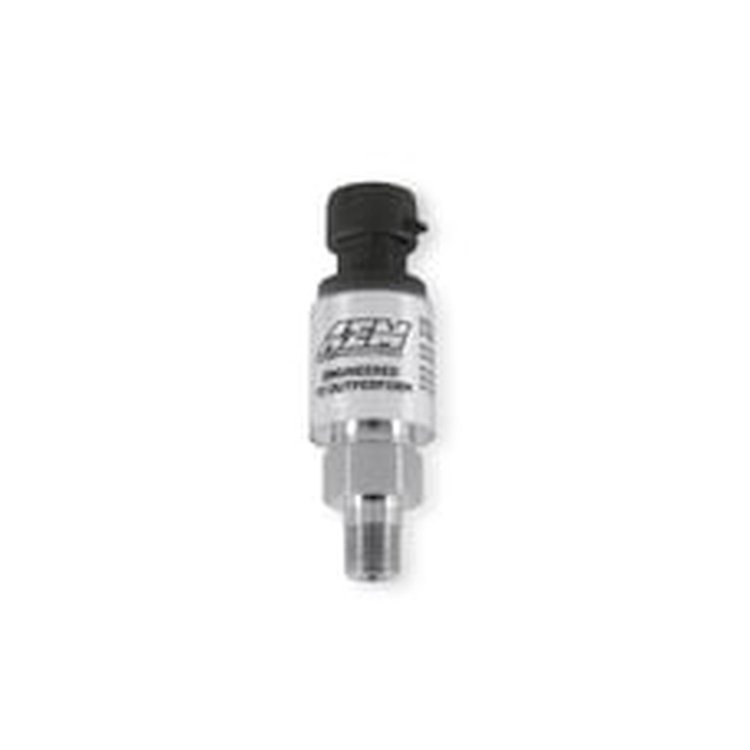

This 150 psig stainless steel pressure sensor kit suits jobs where the exact pressure matters, such as feeding an ECU for calibration, because stainless sensors hold a tighter accuracy figure than brass. The sealed housing resists automotive fluids, and the kit includes the connector and pins to wire it in.

AEM 30-2130-150 Technical Specifications:

• Gauge-style (PSIg) sensor that references pressure above atmospheric pressure, with a range of 0-150 psi.
• 1/8 in. NPT male thread for direct mounting.
• Accuracy is within 1% of full scale.
• The sensor body is stainless steel.
• A 1/8 in. NPT to -4 AN adapter is included.

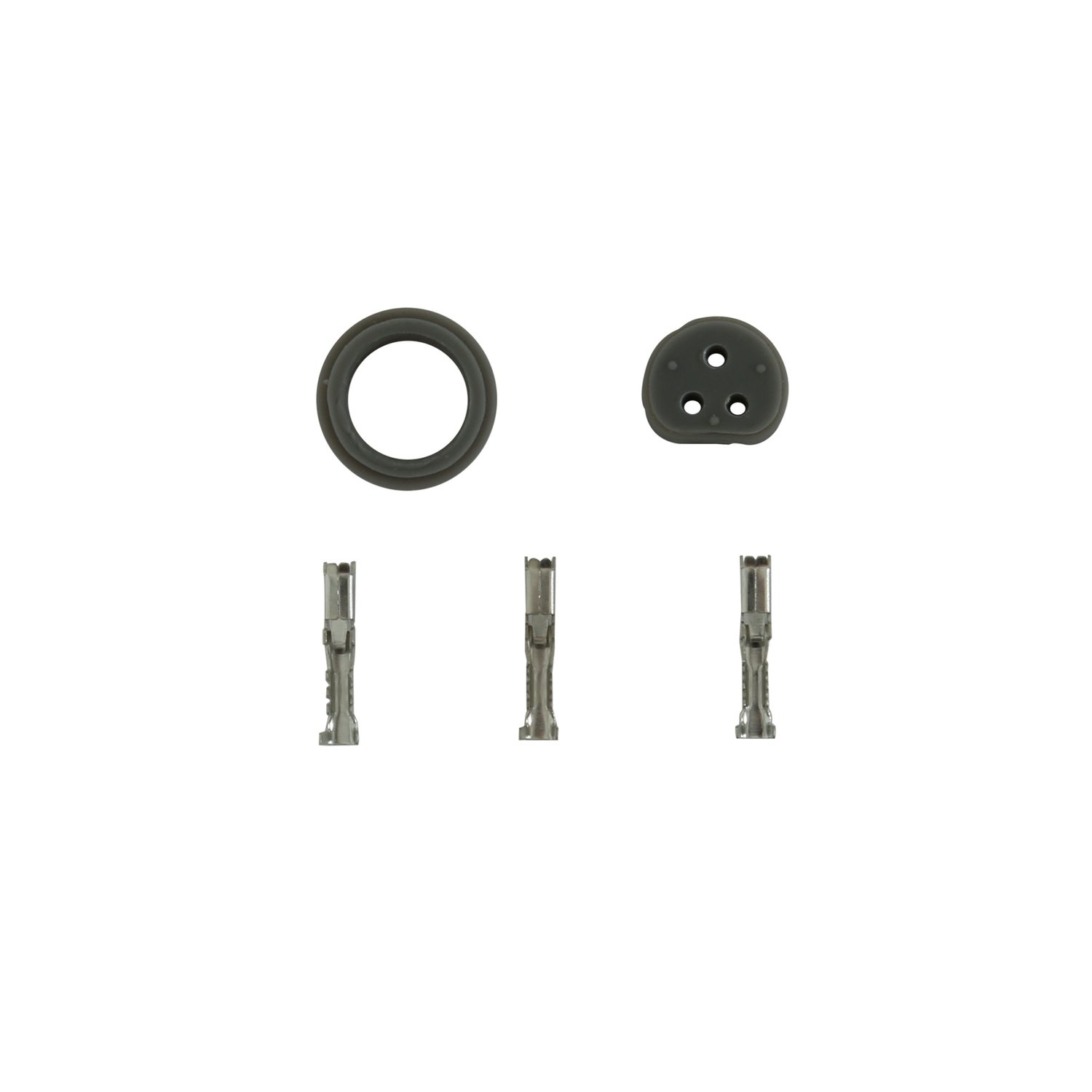

• Connector and pins are included.
• The sealed sensor housing has a 360-degree welded wetted area to resist automotive fluids.
• Analog output data is scaled across the sensor range.
