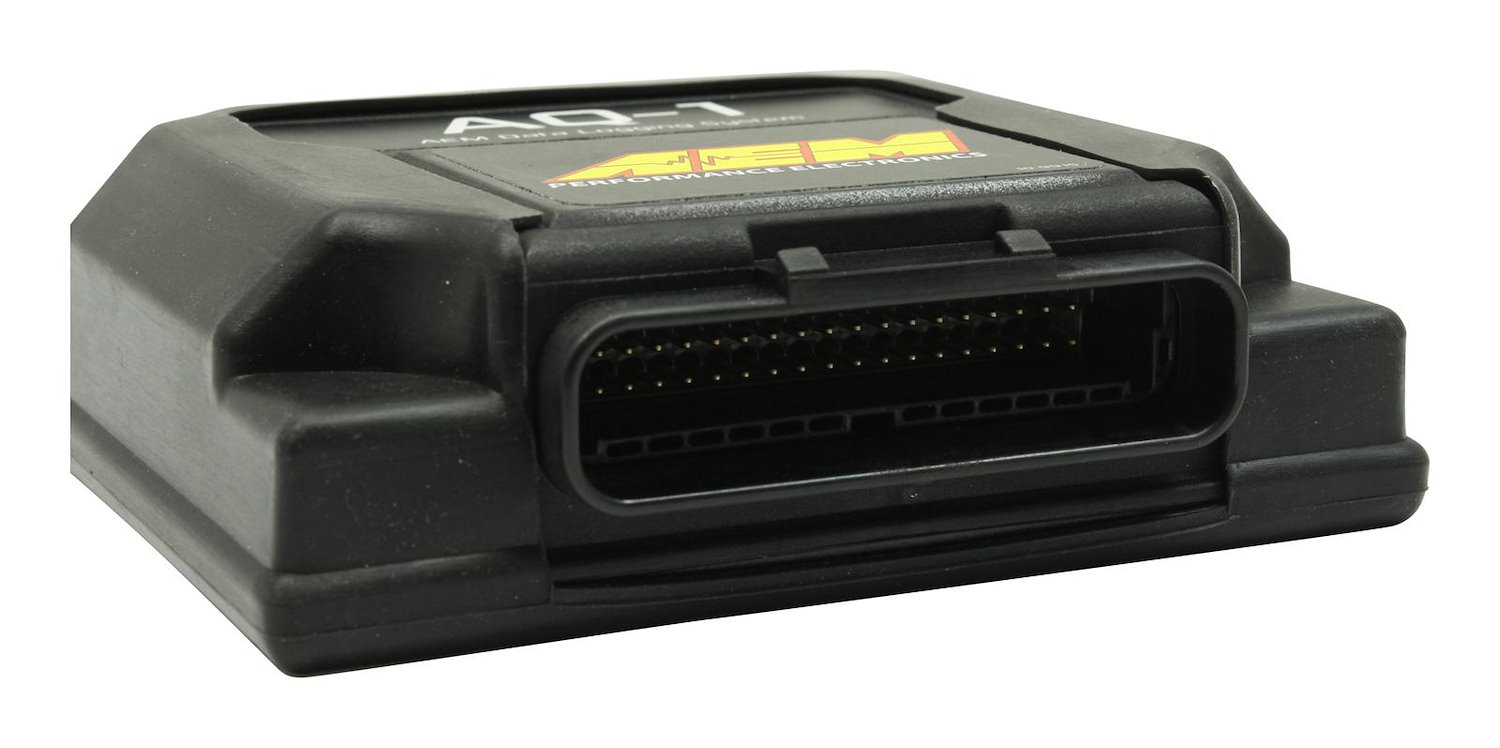

Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2500
AQ-1 Universal Data Logger Internal 3-axis accelerometer (+/- 4g MAX)
$37499
Ships on Sep 04, 2026
Lowest Price GuaranteeData Logger
- AQ-1 Universal Data Logger
- Internal 3-axis accelerometer (+/- 4g MAX)
- Removable SD card for virtually unlimited logging (2GB card included)
- RS-232 serial input included for adding NMEA GPS device
- Compact size (4.8" x 4.55" x 1.44")
AQ-1 Data Logger Technical Features - Four 0-5V analog inputs with optional pull-up resistor for RTD/Thermistor-style sensorExamples: AEM gauges, MAP/pressure sensors, TPS/APP/shock travel/load cell sensors, analog MAF sensors, any 2 wire temp sensor, RTD, EGT
- Four analog inputs for that can optionally measure frequency (0-5 V or 0-16 V)Examples: RPM, vehicle speed, frequency based MAF, injector duty cycle, boost control solenoid, flow sensor, hall sensor, any 3 wire pressure sensor
- Three switched to ground digital inputs, 16.5 V MAX toleranceExamples: Clutch/brake/cooling fan ground switch, nitrous solenoid ground or ground switch input to start/stop Logger (Ground activated input)
- Up to 1 KHz logging rate (1000 samples/second) per channel
- AEMnet connection included for easy connection to AEMnet enabled devices
- Data saved to single file with real-time clock
- Log files generated in AEMLog software
- Configurable CAN bus for interface with other manufacturer's CAN-enabled devices
Part TypeData Acquisition Module
BrandAEM ELECTRONICS
Package Height2.6
Package Width6.4
Package Length6.7
Weight1.09 PG
Part CategoryPerformance Parts
Product TypeData Acquisition Module
QuantitySold individually
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
EASY KITS
AEM ELECTRONICS

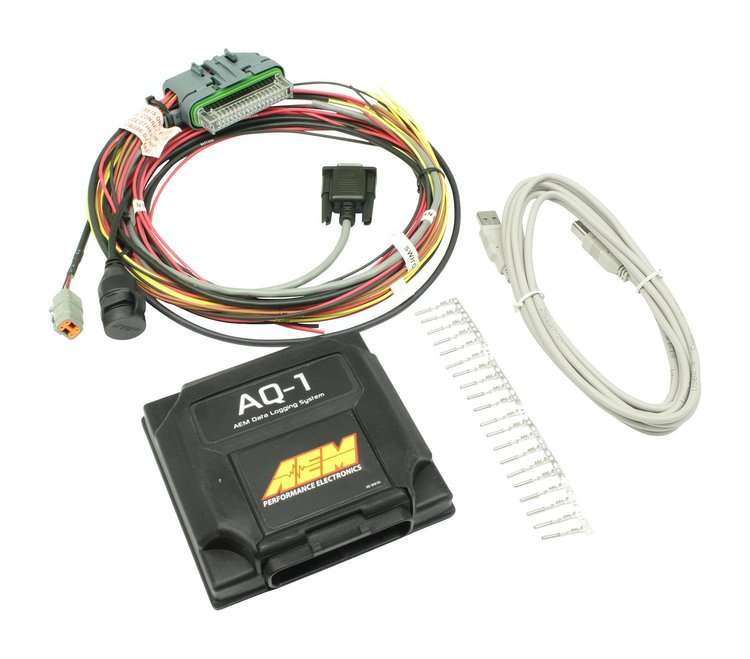

AQ-1 Universal Data Logger Kit Includes: AQ-1 Universal Data Logger
Part Number : 017-30-2500K
$54681
AEM ELECTRONICS
Part Number : 017-30-2500K
$54681
Some parts are not legal for use in California or other states with similar laws / regulations
