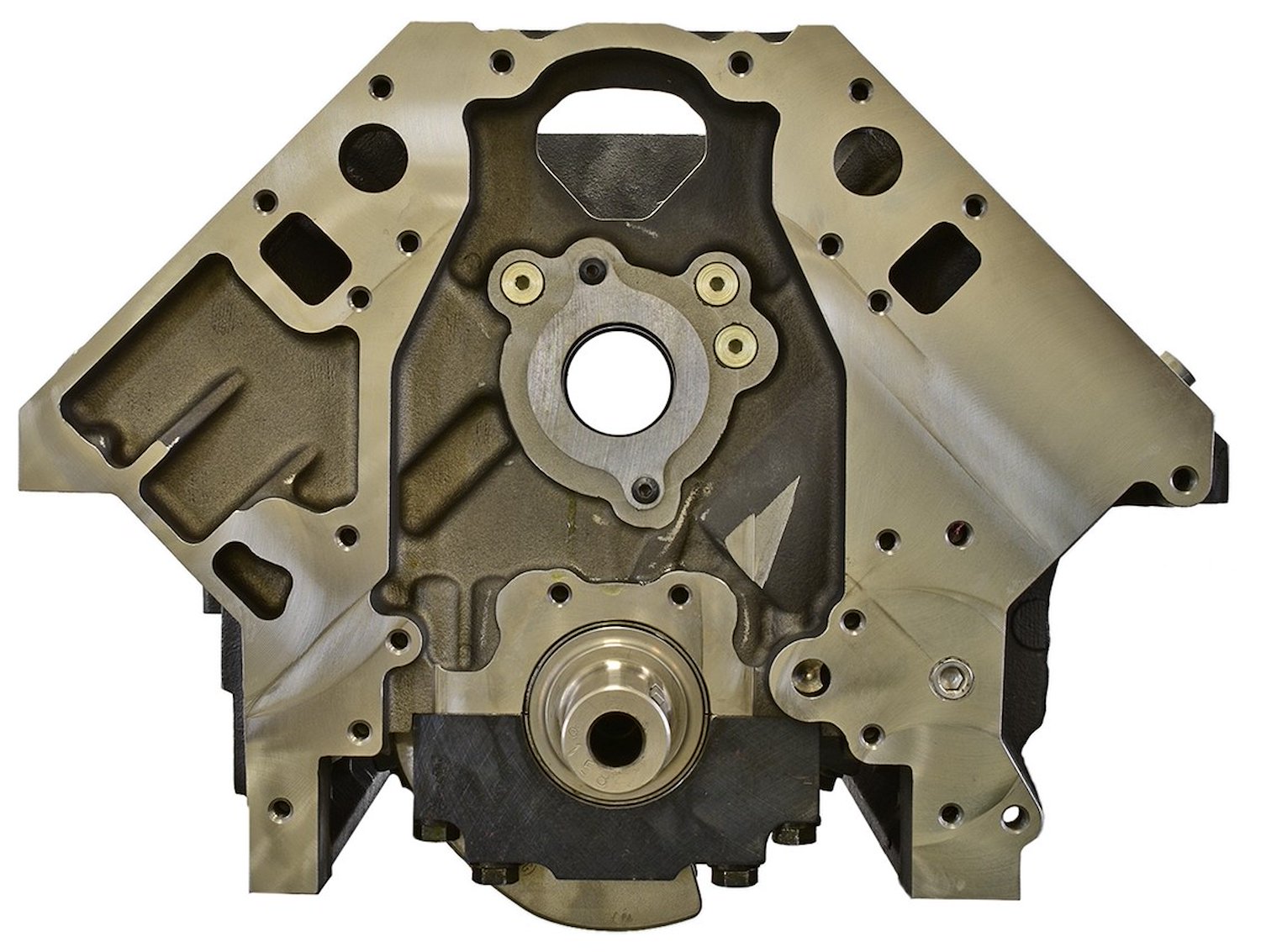

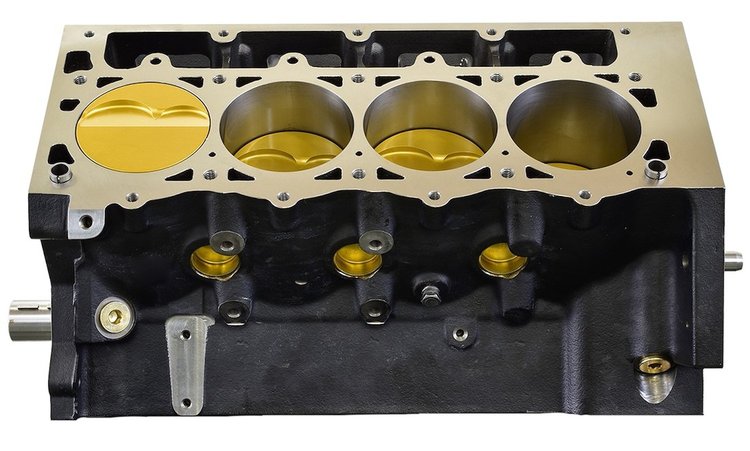

SPE4271800 Elite Series Dart LS Next Cast Iron 427 ci. Short Block [1800 HP Rated]
InfoVehicle Info Needed
ATK ENGINESPART NUMBER: 059-SPE4271800

SPE4271800 Elite Series Dart LS Next Cast Iron 427 ci. Short Block [1800 HP Rated]

$9,59020
Truck Freight
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Cylinder Head Kit for GM LS3 Engines [w/Head Bolts]

JEGS

Cylinder Head Kit for GM LS3 Engines [w/Head Bolts]

Part Number : 555-514050K
$1,84520
Cylinder Head for GM LS1, LS2, LS6 Engines [Cathedral Port]

JEGS

Cylinder Head for GM LS1, LS2, LS6 Engines [Cathedral Port]

Part Number : 555-514055
$69999$755.99
You Save$56.00
Cylinder Head for GM LS3 Gen 4 6.2L Engines

JEGS

Cylinder Head for GM LS3 Gen 4 6.2L Engines

Part Number : 555-514050
$79999$815.99
You Save$16.00
Cylinder Head Kit for GM LS3 Engines [w/Head Studs]

JEGS

Cylinder Head Kit for GM LS3 Engines [w/Head Studs]

Part Number : 555-514050K2
$1,88220

427 ci.
Elite Series Elite Series Short Block
  • 427 ci. Displacement
  • 1800 HP Rating
  • Dart LS Next Cast Iron Block (4.125 in. Bore)
  • Billet Steel Crank (4 in. Stroke)
  • Forged 4340 I-Beam Rods
  • Forged 2618 Dish 17.4 cc Pistons
  • Pro Seal Rings

    ATK Engines SPE4271800 Elite Series Short Block Features:

    • Dart LS Next SHP Skirted Block features a full skirt design with a priority main oiling system, steel four bolt main caps and accepts a 4 or 6 bolt cylinder head
    • Dart BILLET Crankshaft can handle over 2000 HP and outfitted with Center Counter Weights that adds material and strength to the center of the crank that counters the jump rope effect under high RPM and increased power
    • Manley Pro Series I Beam Rods are fully-machined billet and have a heavier beam for forced induction applications
    • JE Ultra Series Pistons include a thermal barrier crown coating, lateral gas ports, thick-wall wrist pins and a new forging technology for Massive Power and Boost right out of the box
    • JE Pro Steel Rings maximize horsepower through precision sealing of combustion pressure. This ring pack will have a carbon steel top ring for high boost applications
    • Calico Coated Bearings have a dry film lubricant to reduce friction and abrasive wear, provide intermittent dry lubrication and are not affected by dust or dirt
    • Suitable for a Single or Twin Turbo application

    ATK Engines SPE4271800 Elite Series Short Block Specs:

    • Compression Ratios with .051 in. Gasket:
      • 66 cc= 10.65:1 / 68 cc= 10.4:1 / 70 cc= 10.2:1
    • Bore: 4.125 in.
    • Stroke: 4 in.
    • Displacement: 427 ci.
    • Crankshaft: Dart Billet w/58 tooth reluctor wheel
    • Rods: Manley Pro Series I Beams 4340 Forged 6.125 in. w/ARP 2000 Bolts
    • Pistons: JE Ultra Flat Top 2618 Forged with Thermal Coating, Lateral Gas Ports, .200 in. Pin
    • Rings: JE Pro Seal with Carbon Steel Top Ring
    • Camshaft Bearings: Installed & Positioned to OEM Position
    • Freeze Plugs: Installed with Sealant
    • Oil Galley Plugs: Installed with Sealant

    ATK Engines SPE4271800 Recommended Components (Each Sold Separately):

    • Balancer Internally balanced
    • Flexplate Internally balanced
    • Head Gasket .051 in. Compressed Thickness
    • Melling Oil Pump 10296 with red spring
    • 20W50 NON-SYNTHETIC Oil for first 3000 miles

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Please CLICK HERE for ATK Warranty

    • Short Blocks a Step Above the Rest

      ATK Engines Elite Series Dart LS Next Cast Iron Short Blocks are purpose-built for high-horsepower applications.

    Part TypeEngine Short Block
    Product LineATK Engines Elite Series Dart LS Next Cast Iron Short Blocks
    BrandATK ENGINES
    Package Height36.0
    Package Width36.0
    Package Length36.0
    Weight445.0 PG
    Part CategoryPerformance Parts
    Crankshaft MaterialBillet
    Cam Bearings IncludedYes
    AssembledYes
    Connecting Rod Beam StyleI-beam
    Engine Assembly StyleShort Block
    Part FitmentUniversal Fit
    Actual Engine Cid427
    Engine Stroke4 in.
    Bore4.125 in (104.8 mm)
    Vendor Part NumberSPE4271800
    Package Qty1
    Package TypeEA
