Auto Meter 200705 Features:

• Includes: 1/8 in. NPT pressure sender, 1/4 in. NPT adapter, 1/8 in. NPT temperature sender, 3/8 in. and 1/2 in. NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• 12 and 16 volt compatible, well-suited with nearly every electrical system

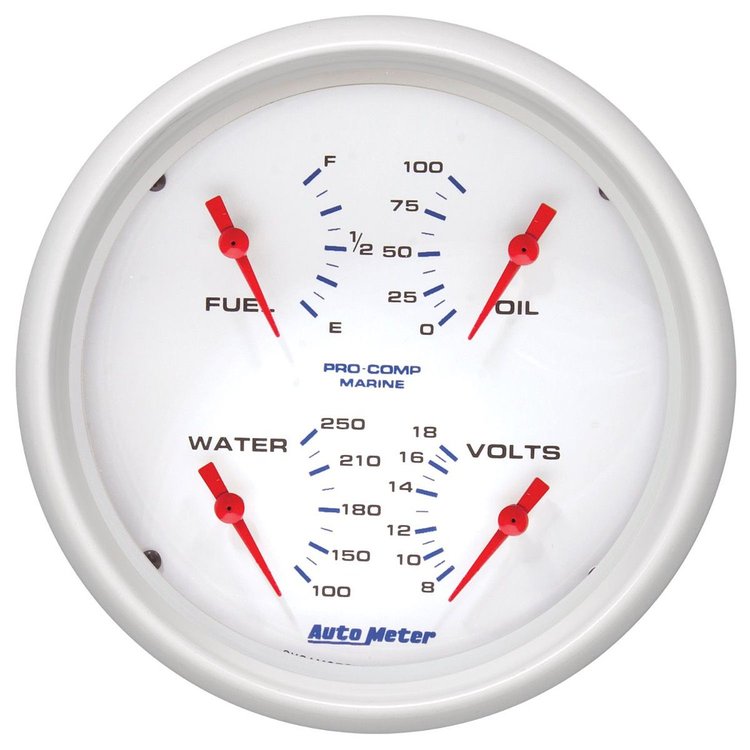

When dashboard space is limited, the AutoMeter Quad Gauge offers an ideal solution while maintaining a sleek appearance. Each gauge features individual AutoMeter air core movements, ensuring the accuracy and durability needed for even the most demanding applications. The package includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter operates within a range of 8-18 volts for negative ground electrical systems, and the fuel level resistance varies from 240 ohms when empty to 33 ohms when full.
