Vehicle Info NeededAUTO METERPART NUMBER: 105-200765

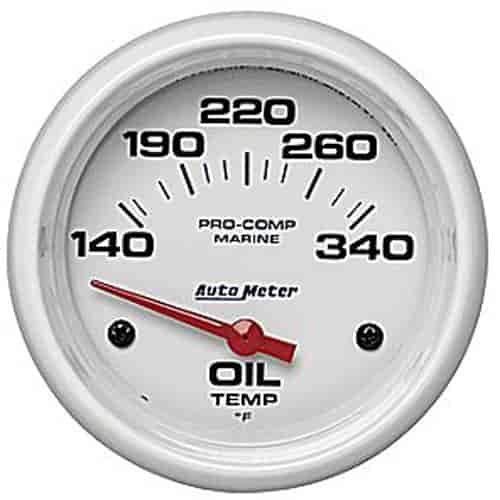

Pro-Comp White Phantom Marine Oil Temperature Gauge Diameter: 2-5/8"
$7599
Ships on 09/08/2026
Lowest Price GuaranteeOil Temperature Gauges - 2-5/8"
- Pro-Comp White Phantom Marine Oil Temperature Gauge
- Diameter: 2-5/8"
- Range: 140-340º F
- Electrical
- Sending Unit Not Included
- Sensor 105-990344 Required
- White Bezel
Sensor 105-990344 Required. - Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter sending unit 990344
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
- Traditional incandescent lighting illuminates around the perimeter of the dial
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter's patented air core meter movement, a single wire, 1/8" NPT temperature sender (990344) is available separately.
Part TypeGauge
BrandAUTO METER
Package Height5.3
Package Width5.6
Package Length5.7
Weight0.61 PG
Part CategoryPerformance Parts
MeasurementUS
TypeElectrical
Temperature140-300 F
Bezel ColorWhite
Pointer ColorFluorescent Red
Size2.625 in (66.7 mm)
Bezel StyleSuper Bezel
Lighting TypeIncandescent
Part FitmentUniversal
Lighting ColorWhite Incandescent
Dial (Face Color)White
Vendor Part Number200765
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
AUTO METER
Short Sweep Electric Temperature Gauge Sender 250°, 300°, 340°
Part Number : 105-990344
$2199
AUTO METER
Part Number : 105-990344
$2199
