Vehicle Info NeededAUTO METERPART NUMBER: 105-200775-40

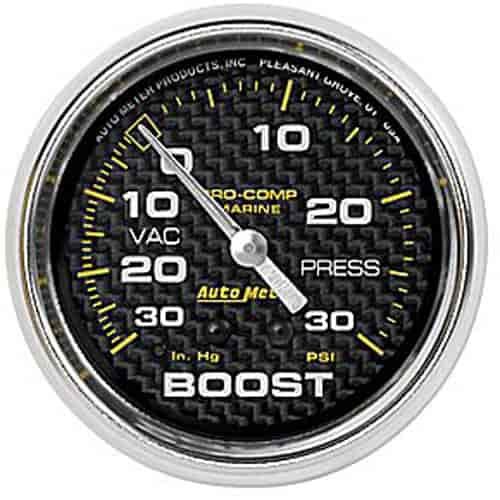

Pro-Comp Carbon Fiber Marine Vacuum / Boost Gauge Diameter: 2-5/8"
$7999
Ships on 09/11/2026
Lowest Price GuaranteeVacuum / Boost Gauges - 2-5/8"
- Pro-Comp Carbon Fiber Marine Vacuum / Boost Gauge
- Diameter: 2-5/8"
- Range: 30 hg/20 psi
- Mechanical
- Silver Bezel
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
The standard in the industry, AutoMeter's Mechanical Boost/Vac gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn't another gauge on the market that can lay claim to the levels of accuracy or durability you'll find here. A simple 1/8" NPT pressure connection requires no electrical hookup for operation. Appropriate 1/8" NPT fittings and line kits are available separately.
Part TypeGauge
BrandAUTO METER
Package Height5.2
Package Width5.6
Package Length5.7
Weight0.63 PG
Part CategoryPerformance Parts
Bezel ColorPolished Aluminum
Vacuum0-30 in. Hg-Vac
Pointer ColorSilver
Boost20 PSI
Size2.625 in (66.7 mm)
Bezel StyleSuper Bezel
Lighting TypeIncandescent
Part FitmentUniversal
Lighting ColorWhite Incandescent
Dial (Face Color)Carbon Fiber
Vendor Part Number200775-40
Package Qty1
Package TypeEA
