Vehicle Info NeededAUTO METERPART NUMBER: 105-200777-33

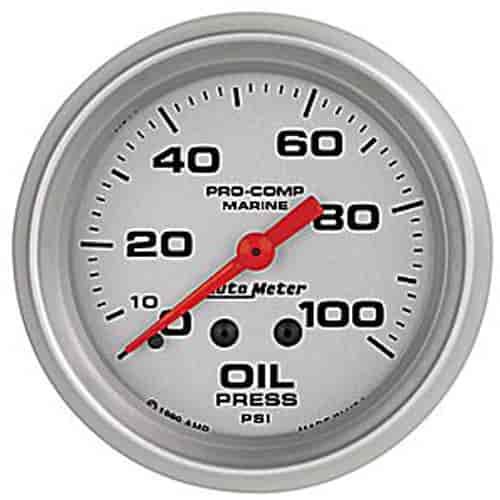

Pro-Comp Ultra Lite Marine Oil Pressure Gauge Diameter: 2-5/8"
$7699
Ships on 09/22/2026
Lowest Price GuaranteeOil Pressure Gauges - 2-1/16"
- Pro-Comp Ultra Lite Marine Oil Pressure Gauge
- Diameter: 2-5/8"
- Range: 0-100psi
- Mechanical
- Silver Bezel
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter's Mechanical Oil Pressure Gauge utilizes the most advanced bourdon tube meter movement on the market to deliver accuracy and durability you won't find anywhere else. A simple 1/8" NPT connection makes installation easy. Fittings and nylon tube are included and optional braided stainless line kits are available.
Part TypeGauge
BrandAUTO METER
Package Height5.3
Package Width5.4
Package Length5.6
Weight0.63 PG
Part CategoryPerformance Parts
Bezel ColorBrushed Aluminum
Pointer ColorFluorescent Red
Size2.625 in (66.7 mm)
Bezel StyleSuper Bezel
Lighting TypeIncandescent
Part FitmentUniversal
Pressure0-100 PSI
Lighting ColorWhite Incandescent
Dial (Face Color)Silver
Vendor Part Number200777-33
Package Qty1
Package TypeEA
